OR18.ZI-PW1Z.71OV/0010_B012
Baumer

OR18.ZI-PW1Z.71OV/0010_B012

Alt: 11157791

$83.00

Diffuse Reflective Sensor, Pulsed Infrared Diode, 12-30VDC, 0-80mm Sensing Distance Tw, No Adjustment, PNP, Light/Dark Operate, M12 4-Pin Flylead (100mm), Ø18 x 44.8mm, Plastic, -25 to +55°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

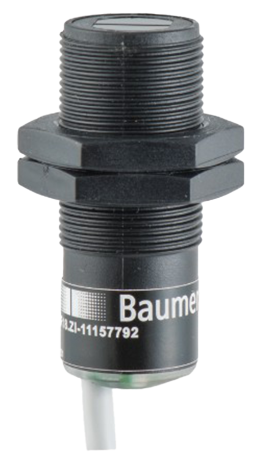

Baumer OR18 diffuse sensors for object detection without a reflector
Description

The Baumer OR18 diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.

Key Features

  • Pulsed infrared diode and pulsed red laser diode light source depending on model
  • Laser class 1M on laser models
  • Sensing distance Tw up to 800mm depending on model
  • 12-30VDC and 10-30VDC supply voltage depending on model
  • PNP, NPN complementary, PNP complementary and NPN output versions
  • Light/dark operate output function
  • Adjustment by 270° potentiometer
  • 2m 4-Pin Cable, M12 4-Pin Connector and M12 4-Pin Flylead connection versions
  • Plastic, Nickel-Plated Brass and Stainless Steel housing depending on model
  • IP67 protection
