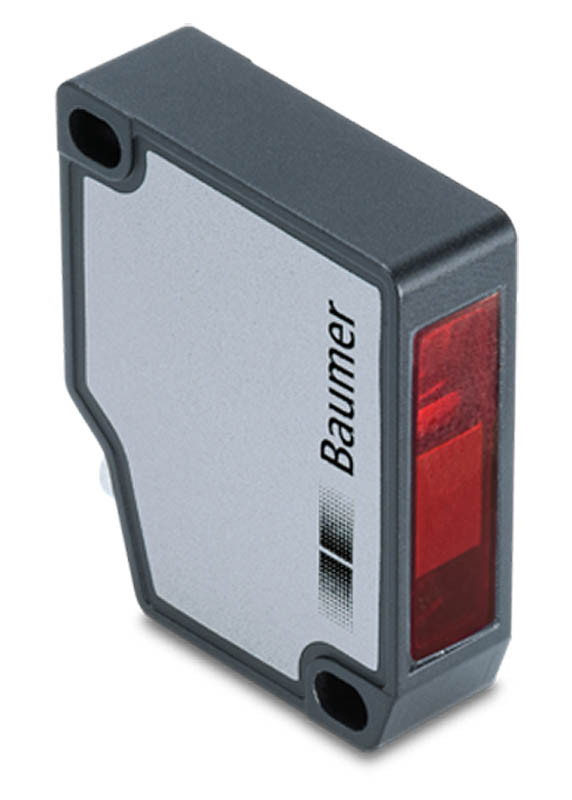

Baumer
OM30-P0100.HV.AUN
Distance Sensor, 50-100mm, Point Beam, 12-28VDC, 0-10VDC Output, Teach-In, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$2,036.00$2,036.00 -
Baumer
OM30-P0100.HV.TXN
Distance Sensor, 12-28VDC, RS485, 50-100mm, Modbus RTU, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$1,833.00$1,833.00 -
Baumer
OM30-P0100.HV.YIN
Distance Sensor, 12-28VDC, 50-100mm, 4-20mA/2-10mA, IO-Link V1.1, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$1,833.00$1,833.00 -
Baumer
OM30-P0100.HV.YUN
Distance Sensor, M8, 50-100mm, 12-28VDC, 0-10VDC/0-5VDC, IO-Link V1.1, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, 4-pin Connector, IP67, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$1,833.00$1,833.00 -
Baumer
OM30-P0350.HV.AUN
Distance Sensor, 12-28VDC, 50-350mm, 0-10VDC Output, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$2,036.00$2,036.00 -
Baumer
OM30-P0350.HV.YIN
Distance Sensor, 50-350mm, 4-20mA/2-10mA, 12-28VDC, IO-Link V1.1, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$1,833.00$1,833.00 -
Baumer
OM30-P0350.HV.YUN
Photoelectric Distance Sensor, Laser Point, 50-350mm Range, Analog and Digital Output Signal: 0-10VDC/0-5VDC, 12-28VDC, 50mA, Teach-In Button/IO Link, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, -10 to +50°C° Operating
$1,833.00$1,833.00 -
Baumer
OM30-P0550.HV.AIN
Distance Sensor, 50-550mm, IP67, 12-28VDC, 4-20mA Output, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$2,036.00$2,036.00 -
Baumer
OM30-P0550.HV.AUN
Distance Sensor, IP67, 50-550mm, 12-28VDC, 0-10VDC Output, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
$2,036.00$2,036.00 -
Baumer
OM30-P0550.HV.TXN
Photoelectric Distance Sensor, 50-550mm, RS485, 12-28VDC, Modbus RTU, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, -10 to +50°C Operating Temperature, 49 x 40.3 x13.6mm (HWD)
$1,833.00$1,833.00 -
Baumer
OM30-P0550.HV.YIN
Photoelectric Distance Sensor, 4-20mA/2-10mA, 50-550mm, 12-28VDC, IO-Link V1.1, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3 x
$1,833.00$1,833.00 -
Baumer
OM30-P0550.HV.YUN
Photoelectric Distance Sensor, Laser Point, 50-550mm Range, Analog and Digital Output Signal: 0-10VDC/0-5VDC, 12-28VDC, 50mA, Teach-In Button/IO Link, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, -10 to +50°C° Operating
$1,833.00$1,833.00
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
