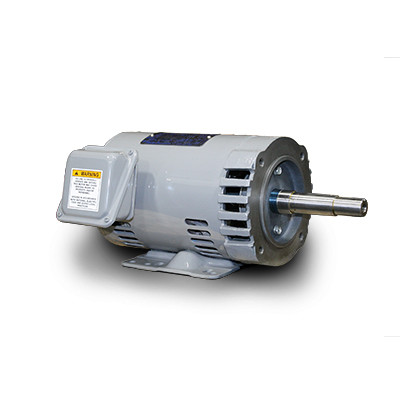

Motor, 10hp, 1800rpm, 4 Pole, 213/215T Frame, 230/460V, 60Hz, Three Phase, NEMA Premium, ODP, Rolled Steel, IP22 (Cannot Ship UPS, Drop Ship Only Via Truck)
SKU:
DTP0104
Weight:
158.00 LBS
Minimum Purchase:
1 unit
NEMA Premium ODP motors built for general-purpose commercial and industrial duty
The Teco-Westinghouse Rolled Steel ODP NEMA Premium series is a lightweight, general-purpose open drip-proof motor line built on a rolled steel frame, suited to fans, blowers, compressors, pumps, and HVAC equipment.
Key Features
NEMA Premium efficiency
Open Drip Proof (ODP) enclosure
Rolled steel frame and main conduit box, rotatable in 90-degree increments, F1 mounted
Also usable on 200V and 208V networks
Inverter duty rated per NEMA MG1, Part 31
1.15 continuous service factor at 60 Hz
Class F insulation, Class B temperature rise, NEMA Design B torque
Available in horizontal foot-mounted or JP/JM close-coupled pump configurations
