A3T225

A3T225

$121.20

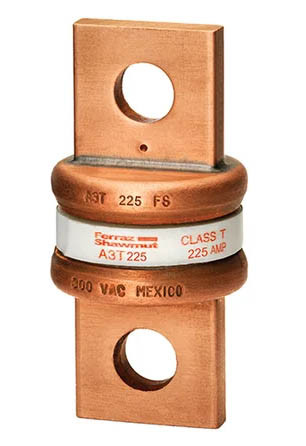

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 225A Blade Amp-Trap®, 1.33" Diameter x 2.75" Length

Weight:
0.28 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

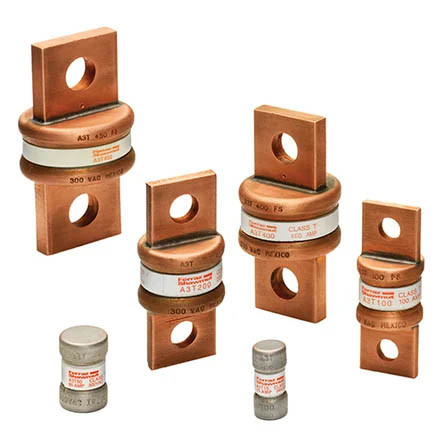

 Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.

Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.

These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Key features:

  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility
  • Available from 1 to 1200 Amp, UL Category Code JDDZ, 50/60Hz, Class T, Fast-Acting

 Applications:

  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers
