81.000.1640.0
Alt: WIPOS PSU3 48-20 P
$723.67
Power Supply, 960W, 3 Phase, 350-575VAC, 48VDC Adjustable (45-56VDC), 20A, Power Boost, LED, DIN Rail Mount, Push-In Connection, IP20
- Weight:
- 3.50 LBS
- Minimum Purchase:
- 1 unit
Description

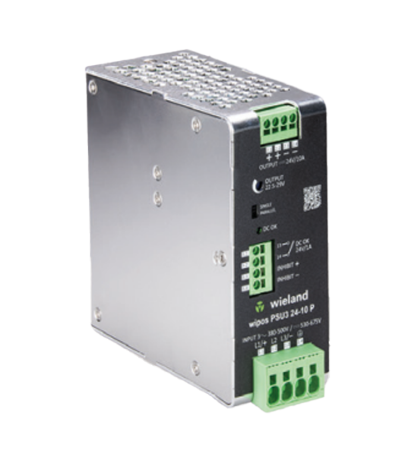

The Wieland WIPOS PSU3 series is a three-phase, DIN rail-mounted power supply built for demanding machinery, plant engineering, and industrial control applications. Its high-efficiency design and built-in power boost capability help control panels handle inrush loads and capacitive startup conditions without oversizing the base unit.
Key Features
- Wide 350-575VAC three-phase input range supports global voltage systems
- Adjustable DC output compensates for voltage drop over long cable runs
- 150% power boost for up to 7 seconds supports high-capacitive or inrush loads beyond nominal rating
- DC-OK status LED provides at-a-glance output monitoring
- Tool-free push-in terminals speed up installation and improve connection reliability
- IP20-rated, DIN rail-mounted compact housing simplifies panel integration
- Supports machinery and plant engineering, safety circuits and PLC systems, conveyor and packaging equipment, building automation/HVAC control, and pharmaceutical/medical device applications
