81.000.1105.0
Wieland

81.000.1105.0

Alt: 81.000.1105.0

$181.02

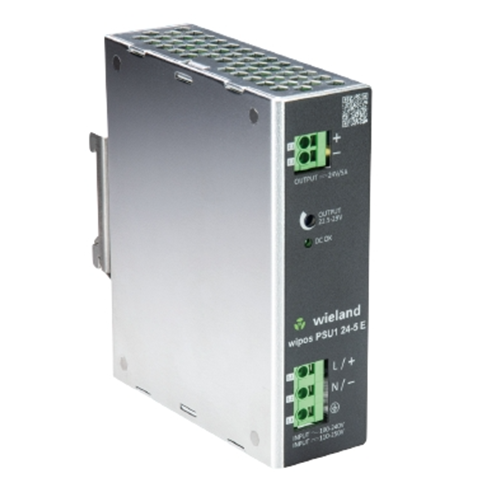

Power Supply, 22.5-29VDC Adjustable, 5A, 120W, 90-264VAC Input, Push-In Connection, DIN Rail Mount, Boost to 156W

Weight:
1.01 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
High-efficiency DIN rail power supply built for demanding industrial panels
Description

The Wieland WIPOS PSU1 series is a single-phase, DIN rail-mounted power supply built for demanding industrial control panels, safety circuits, and communication equipment. Its high-efficiency design and built-in power boost capability help panels handle inrush loads and future expansion without oversizing the base unit.

Key Features

  • Wide 90-264VAC input range covers global voltage systems
  • Adjustable 22.5-29VDC output compensates for voltage drop over long cable runs
  • Temporary power boost supports high-capacitive or inrush loads beyond nominal rating
  • Tool-free push-in terminals speed up installation and improve connection reliability
  • Compact metal housing with no lateral clearance required between units
  • Rated for operation from -25°C to +70°C in demanding environments

Certifications

  • UL 61010-2-201
  • IEC 61010-2-201
  • IEC 62368-1
