Kacon
KPL-BZIG-12V

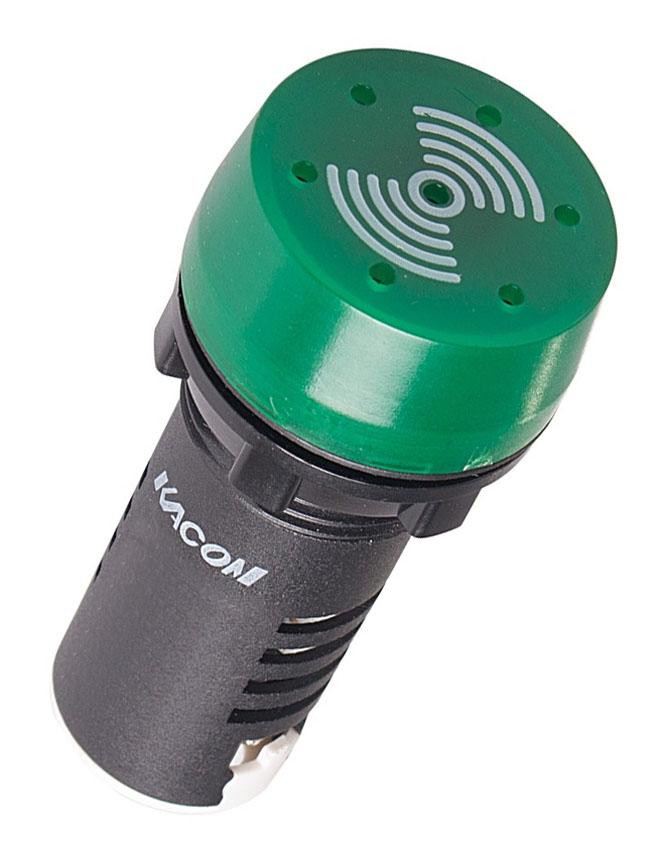

Pilot Light, Ø22mm, w/Buzzer, Green LED, 12VAC/DC, Intermittent Sound, 80dB, Panel Mount
$7.26
We pause this Memorial Day to honor and remember those that gave their lives in service to our country.
Our offices will close at 1 p.m. on Friday, May 22nd and reopen on Tuesday, May 26th.
Available Now!
Available Now!
(14 in stock)
KPL-BZIG-24V
Alt: KPL Series
$7.26
Pilot Light, Ø22mm, w/Buzzer, Green LED, 24VAC/DC, Intermittent Sound, 80dB, Panel Mount
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Looking for a low cost LED indicator light with a bright chrome finish? Here it is!

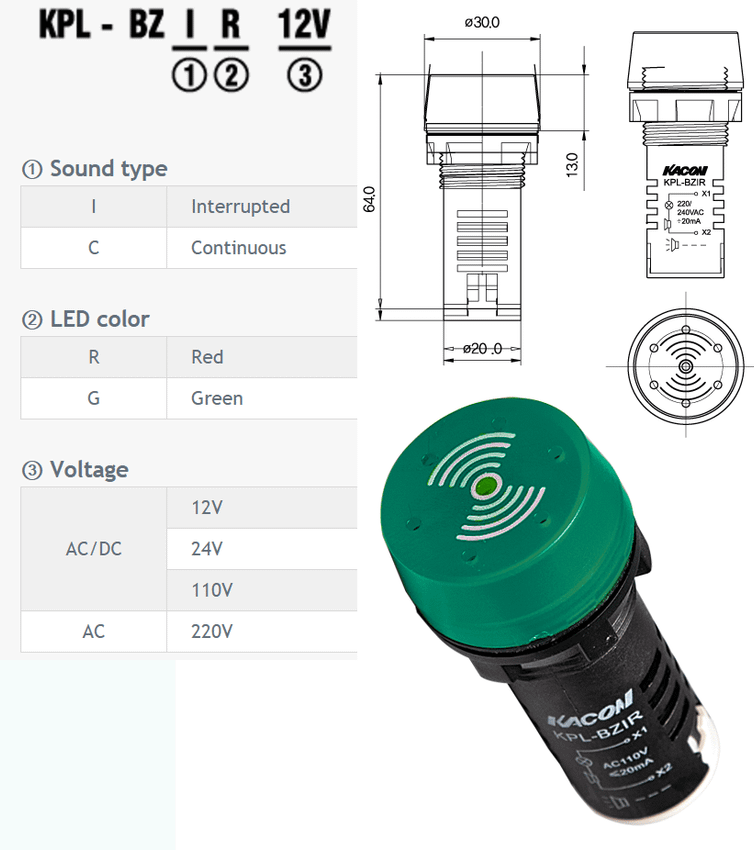

This series offers a bright LED light that is available in five colors; red, green, yellow, blue and white. You can also choose from three bezel styles; flat, round and protruding. Please see the spec sheet for more information.
Features Include:
- Power consumption: 20mA
- Insulation resistance: 100mΩ at 500VDC
- Lamp life: 50,000 hrs
- Type of sounds: Interrupted/Continued
- Volume: 80 phone (dB) minimum
- Weight: Approx. 24g
- Ambient temperature: -25°C~ +55°C
- Terminal bolt driving torque: 0.8N • m (8.16kgf • cm)
