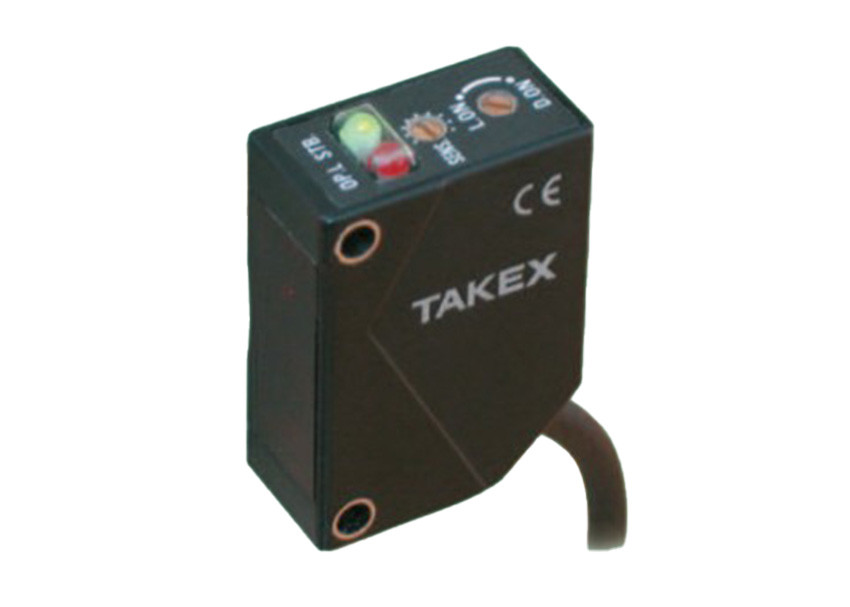

LD-M50RNPN

Photoelectric Sensor, Long Range 50m, No Polarizing Filter

Features Include:

• High power with ultra thin beam.
• Long range and nighly accurate detection by red laser.
• Wide variety of models for different detecting distances and detection objects.
• Easy adjust ment with red laser spot.
• Fine spot beam detects a minute object through a narrow gap or a hole.
• Detection Method: Polarized reflective
• Detecting Distance: Dependant on optional reflector selection
• Power Supply:12-24VDC ±10% / Ripple 10% or less
• Current Consumption: 35mA or less
• Output Mode: NPN open collector Rating: Sink current 100 mA (30 VDC) or less Residual voltage: 1 V or less
• Operation Mode: Light ON/Dark ON selectable (with switch)
• Cross-talk prevention: Built-in(Up to 2 sensors)
• Test Input: No voltage input(Contact or Non contact)
• Response Time: 0.5ms or less
• Spot Diameter: 15 x 7 mm ellipse (at 15 m)
• Light source (Light wavelength): Red semiconductor laser (650 nm) Class 2
• Indicator: Operation indicator (orange LED) / Stability indicator (green LED)
• Volume (VR): SENS: sensitivity adjustment (at receiver)
• Switch: Dark ON / Light ON selector switch
• Connection: Cable type (outer dimension: dia. 4 mm) 0.2 mm2 4 cores 2 m (black)
• Material: Case: Heat resistant ABS, Lens: Acrylic
• Weight: Approx. 80g

Environmental Specifications:

• Ambient Light: 5,000 lx or more
• Ambient Temperature:-10 - +55C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
