Baumer
FFAK 17PTD1002/L
Liquid Level Sensor, Pulsed Infrared Diode, 10-30VDC, PNP, NO, 15-Turn Potentiometer, 2m 3-Pin Cable, Polysulfone Housing, 0 to +65°C, IP67
$474.29
FFAM 17PTD1002/L
Alt: 10125918
$1,002.80
Photoelectric Sensor, Liquid Level/Leakage
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

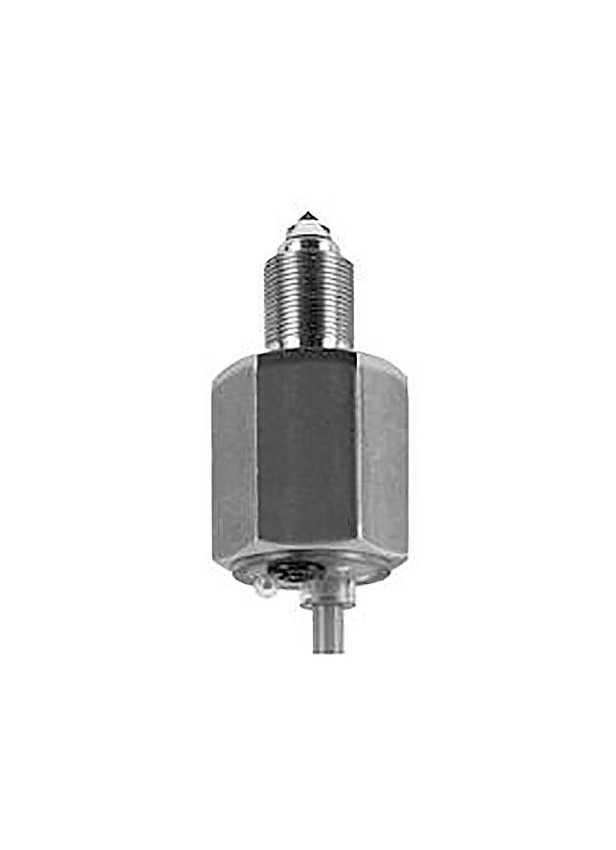

Photoelectric Sensor, Liquid Level/Leakage
Features Include:
- Type: Liquid level sensor
- Light source: Pulsed infrared diode
- Nominal pressure (probe tip): 40 bar
- Output indicator: LED yellow
- Wave length: 880 nm
- Measurement type: Contact with medium
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load)" 15 mA
- Output function: Normally open (NO)
- Output circuit: PNP
- Output current: < 200 mA
- Width / diameter: 30 mm
- Height / length: 81 mm
- Thread: G 3/8"
- Type: Cylindrical
- Material (sensing device): Glass (borosilicate)
- Housing material: Stainless steel DIN 1.4305/AISI 303
- Connection types: Cable 3 pin, 2 m
Technical Information:
