UM-R3TVP

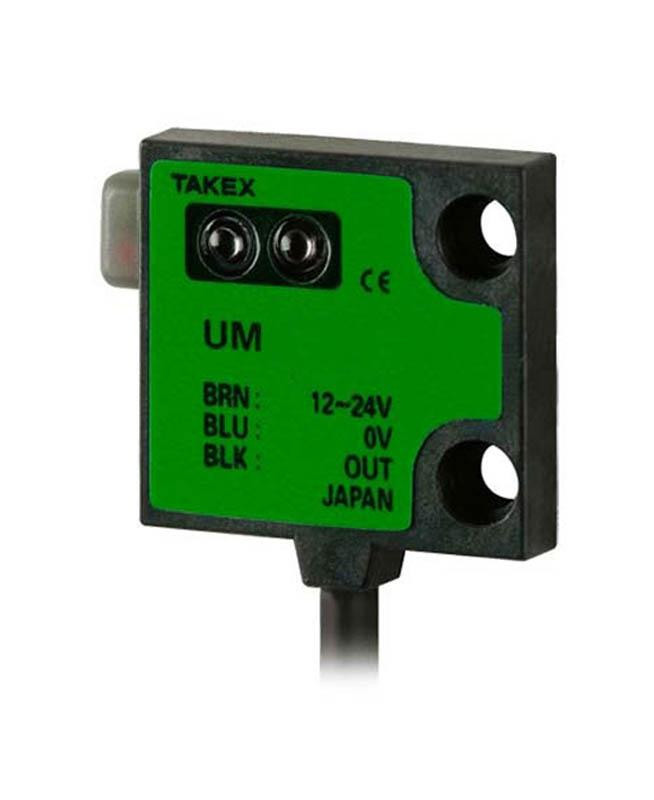

Our Takex UM Series is an ultraminiature photoelectric sensor that is ideal when you need a thin, compact sensor!

• Available in through beam, diffuse reflective or convergent reflective
• Ranges from 2 to 1m (through beam)
• Red LED light source
• 3.5mm achieved with embedded amplifier

Features Include:

• Detection Method: Diffuse reflective
• Detection Distance: 2-50mm (50x50mm white drawing paper)
• Detection Object: Opaque, translucent, transparent
• Power Supply: 12-24V DC¬¨¬®¬¨¬±10% / Ripple 10% or less
• Current Consumption: 27mA or less
• Output Mode: PNP open collector Rating: sink current 80mA (30 VDC) or less
• Response Time: 0.5ms or less
• Operating Angle: 25° (at receiver)
• Hysteresis: Up to 10% of detecting distance
• Light source: Red LED (640nm)
• Volume: in-line sensitivity adjustment
• Material: Case: Liquid crystalline polyester (filler: polypropylene) Lens: Acryl resin
• Weight: Approx. 40g

Indicator:

• Transmitter: Operation indicator (red LED)
• Receiver: Stability indicator (green LED)

Connection:

• Attached cable (dia. 2.8)
• 0.15 mm2 x 3 cores 2m (black)

Environmental Specifications:

• Ambient Light: 3,000 lx or less
• Ambient Temperature: -25°C - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
