Baumer

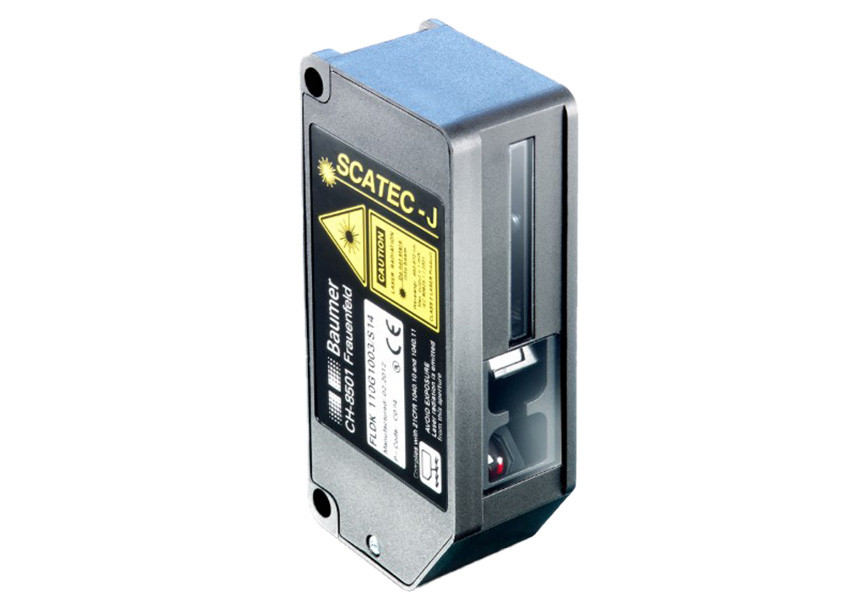

FLDK 110G1003/S14
Copy Counter, SCATEC-2, Pulsed Red Laser Diode, Laser Class 2, 10-30VDC, 0-60mm Measuring Distance, Push-Pull, PA 6, 0 to +50°C, IP54
$10,001.00
FLDK 110G1003/S42
Alt: 10152351
$10,001.00
Photoelectric Laser Copy Counter, Push-Pull, 0 to 60mm, 10-30VDC, IP54
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor
Features Include:
- Measuring distance Sd: 0 - 60 mm
- Optimum operating distance: 40 mm
- Counting rate: < 600000 Copies/h
- Object speed: < 5 m/sec
- Object cycle distance: > 1 mm
- Sensitivity: Single sheet/edge thickness 0,2 mm
- Measuring point: Visible red laser line 2 mm
- Light source: Pulsed red laser diode
- Wave length: 670 nm
- Laser class: 2
- Edge indicator: LED yellow
- Power on indication: LED green
- False pulse suppression: On/off switchable
- Sensitivity adjustment: High/low switchable
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 180 mA
- Output circuit: Push-pull
- Output pulse length: 5 / 10 / 15 / 20 ms selectable
- Width / diameter: 30 mm
- Type: Rectangular
- Housing material: PA 6
- Connector base (main connector): DIN 45322, 6 pin
- Front (optics): Glass
Technical Information:
