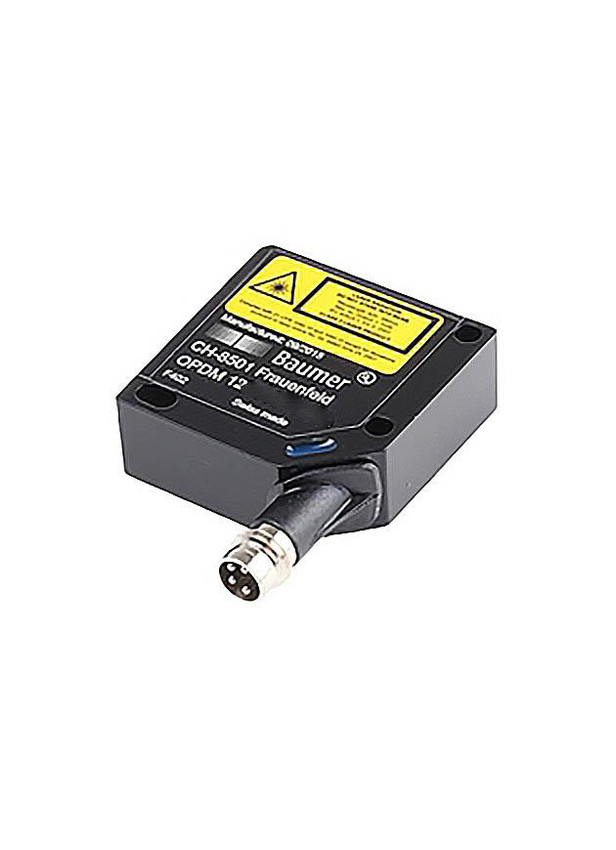

OPDM 12P5101/S35A
Baumer

OPDM 12P5101/S35A

Alt: 10132220

$1,022.20

Photoelectric, Retro-Reflective Laser

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Retro-Reflective Laser

Features Include:

  • Type: Retro-reflective laser sensor
  • Version: Single lens optics
  • Light source: Pulsed red laser diode
  • Actual range Sb: 7 m
  • Nominal range Sn: 8 m
  • Alignment / soiled lens indicator: Flashing light indicator
  • Light indicator: LED yellow
  • Power on indication: LED green
  • Laser class: 2
  • Distance to focus: 400 mm
  • Wave length: 650 nm
  • Voltage supply range +Vs: 10 - 30 VDC
  • Current consumption max. (no load): 50 mA
  • Current consumption typ.: 40 mA
  • Voltage drop Vd: < 1.8 VDC
  • Output function: Light/Dark operate
  • Output circuit: PNP
  • Output current: < 100 mA
  • Width / diameter: 12.4 mm
  • Height / length: 35 mm
  • Depth: 35 mm
  • Type: Rectangular
  • Housing material: Die-cast zinc
  • Front (optics): Glass
  • Connection types: Connector M8 4 pin
