50137233

Photoelectric, Polarized retro-reflective 0..0.5m, Laser, Red, PNP, Cable, 2,000 mm, 4wire

Features Include:

• Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
• Residual Ripple: 0 - 15 %, From U_B
• Switching Frequency: 3,000 Hz

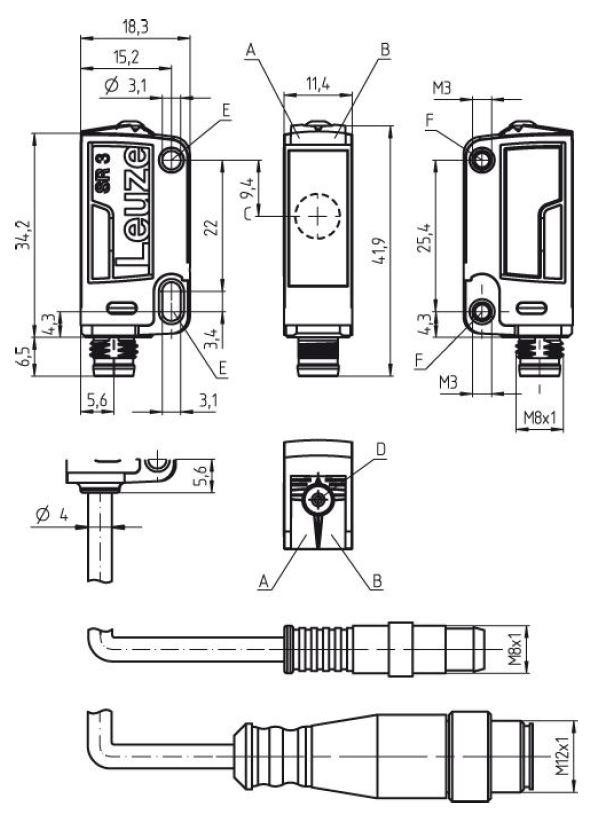

• Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
• Housing Material: Plastic, PC-ABS
• Lens Cover Material: Plastic/PMMA

Connection:

• Type of Connection: Cable
• Number of Conductors: 4-wire

Optical Data:

• Operating Range: 0 - 4 m
• Operating Range Limit: 0 - 5 m
• Light Source: LED, Red
• Laser Class: 1, IEC/EN 60825-1:2007
• Light-spot size [at sensor distance]: 1 mm [500 mm]

Need More Information?

• Leuze PRK3CL1.T3/2T Datasheet
• Leuze PRK3C Retro-Reflective Photoelectric Sensor Operation Manual
