O300.GP-GW1B.72CU
Baumer

O300.GP-GW1B.72CU

Alt: 11120101

$284.60

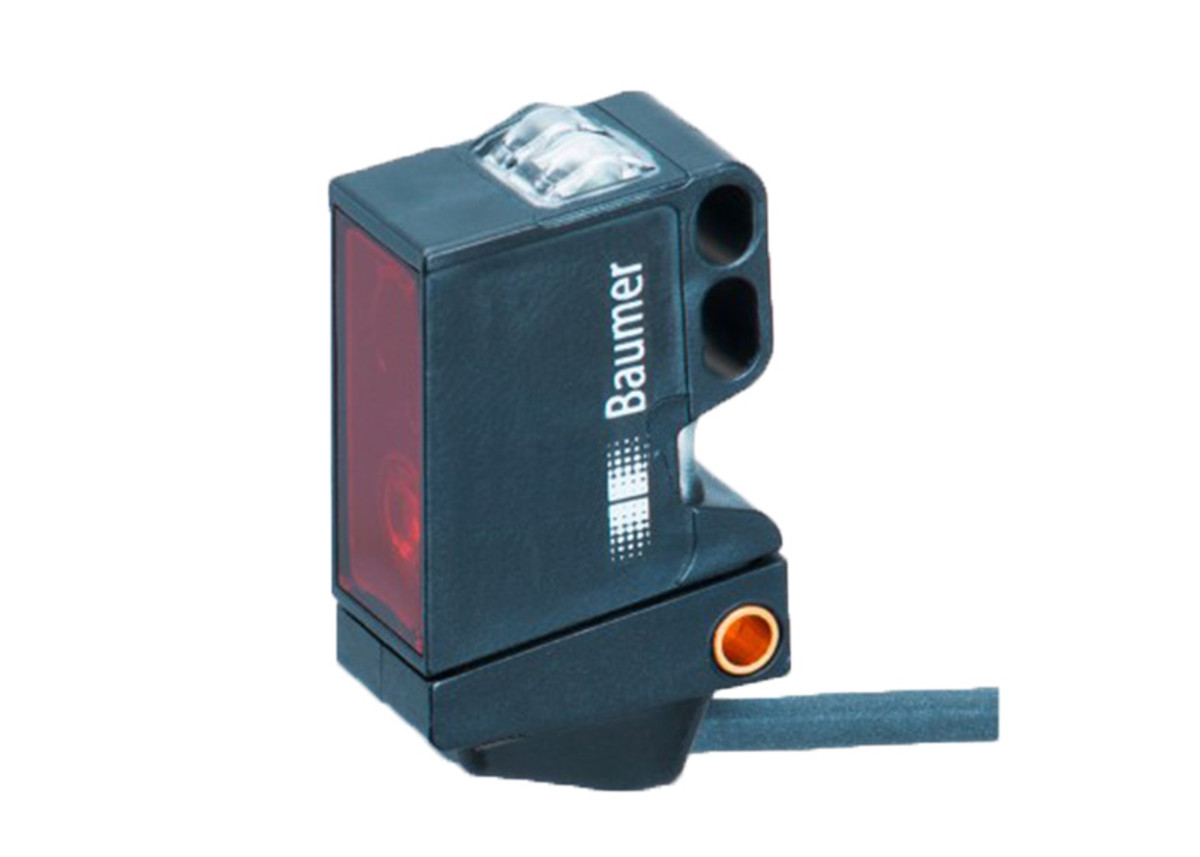

Diffuse Sensor with Background Suppression (BGS), Pulsed PinPoint LED, 10-30VDC, 30-200mm Sensing Range, qTeach/External Sensing Adjustment, Light/Dark Operate, Push-Pull, 2m 4-pin Cable, IP67, 32.3 x 12.9 x 23mm (HWD)

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.

Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.

Features Include:

  • Type: Background suppression
  • Light source: Pulsed PinPoint LED
  • Sensing distance Tw: 30 - 200 mm
  • Sensing range Tb: 15 - 200 mm
  • Sensing distance adjustment: Teach / external
  • Wave length: 630 nm
  • Voltage supply range +Vs: 10 - 30 VDC
  • Current consumption max. (no load): 45 mA
  • Current consumption typ.: 30 mA
  • Voltage drop Vd: < 3 VDC
  • Output function: Light / dark operate
  • Output circuit: Push-pull
  • Width / diameter: 12.9 mm
  • Height / length: 32.3 mm
  • Depth: 23 mm
  • Housing material: Plastic (ASA, PMMA)
  • Front (optics): PMMA
  • Connection types: Cable 4 pin, 2 m
