50129386

Photoelectric, Diffuse, Background suppression, 0.005..0.1m, LED, Red, PNP, Cable, M8, Metal, 4pin

Features Include:

• Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
• Residual Ripple: 0 - 15 %, From U_B
• Switching Frequency: 1000 Hz

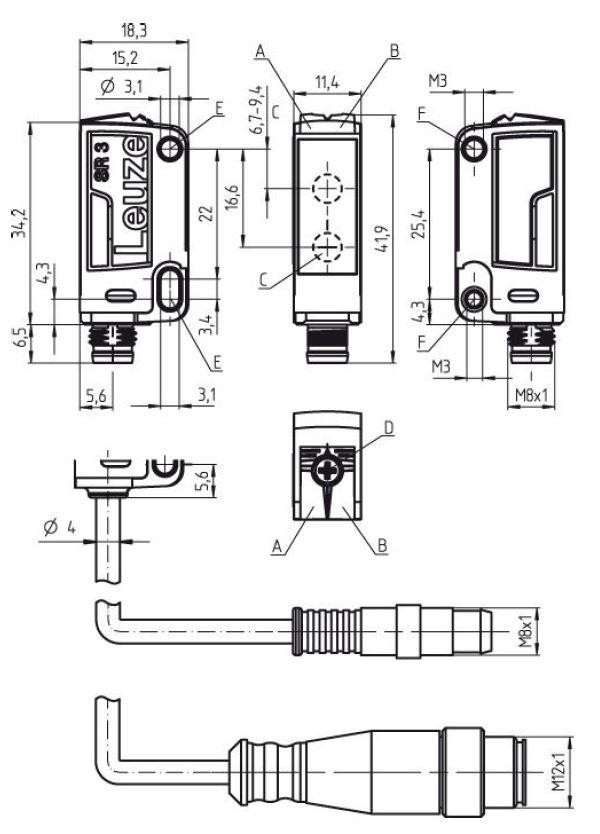

• Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
• Housing Material: Plastic PC-ABS
• Lens Cover Material: Plastic/PMMA
• Type of Fastening: Via optional mounting device, Through-hole mounting

Connection:

• Type of Connection: Cable with connector
• Cable Length: 200 mm
• Thread Size: M8
• Material: Metal
• Number of Pins: 4-Pins

Optical Data:

• Black-White Error: <10% up to 60 mm
• Operating Range, White 90%: 0.005 - 0.05 m
• Operating Range, Gray 18%: 0.005 - 0.045 m
• Operating Range, Black 6%: 0.005 - 0.04 m
• Operating range limit, white 90%: 0.005 - 0.1 m
• Operating range limit, gray 18%: 0.005 - 0.09 m
• Operating range limit, black 6%: 0.005 - 0.08 m
• Adjustment range: 20 - 100 mm
• Light Source: LED, Red
• Light-Spot Size (at sensor distance): 3 mm x 40 mm [50 mm]
