50127065

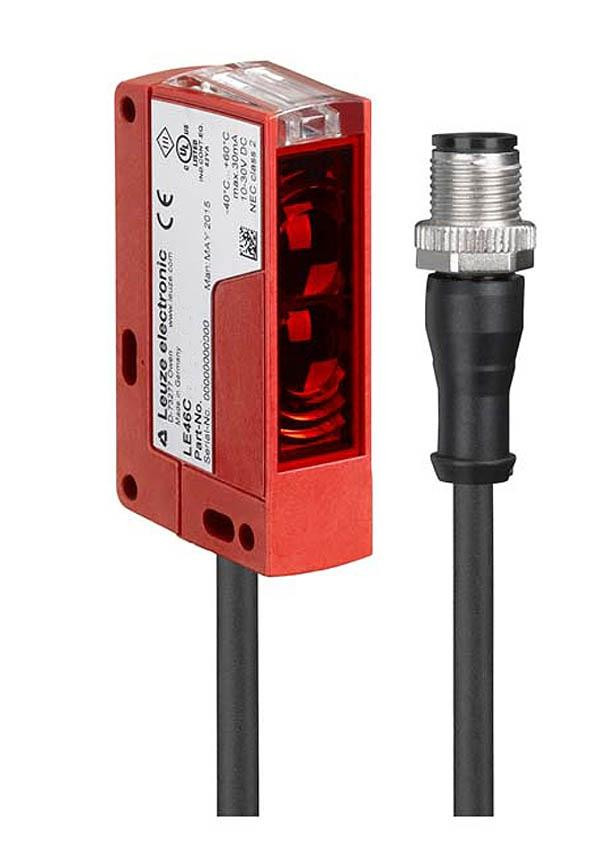

Photoelectric, Diffuse, Background suppression, 0.005...3 m, LED, Infrared, M12, Plastic, 4 -pin,

Features Include:

• Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
• Residual Ripple: 0 - 15 %, From U_B
• Switching Frequency: 250 Hz
• Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm
• Housing Material: Plastic, PC-PBT
• Lens Cover Material: Plastic/PMMA

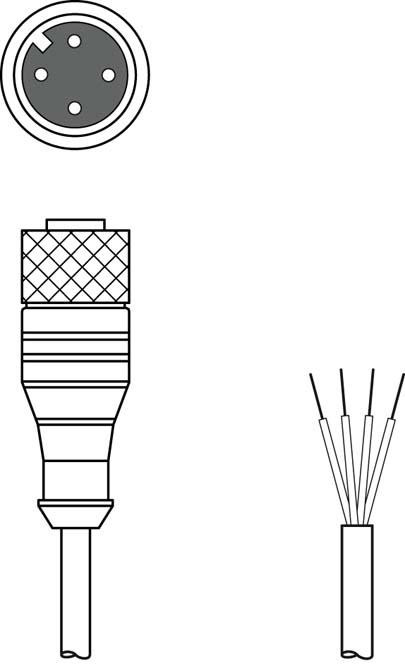

Connection:

• Type of Connection: Connector
• Thread Size: M12
• Material: Plastic
• Number of Pins: 4-pin

Optical Data:

• Black-White Error: <10% up to 1200 mm
• Operating Range, White 90%: 0.005 - 3 m
• Operating Range, Gray 18%: 0.02 - 2 m
• Operating Range, Black 6%: 0.05 - 1.5 m
• Operating Range Limit: 0.005 - 3 m
• Adjustment range: 5 - 3,000 mm
• Light Source: LED, Infrared

Need More Information?

• Leuze HT46CI Datasheet
