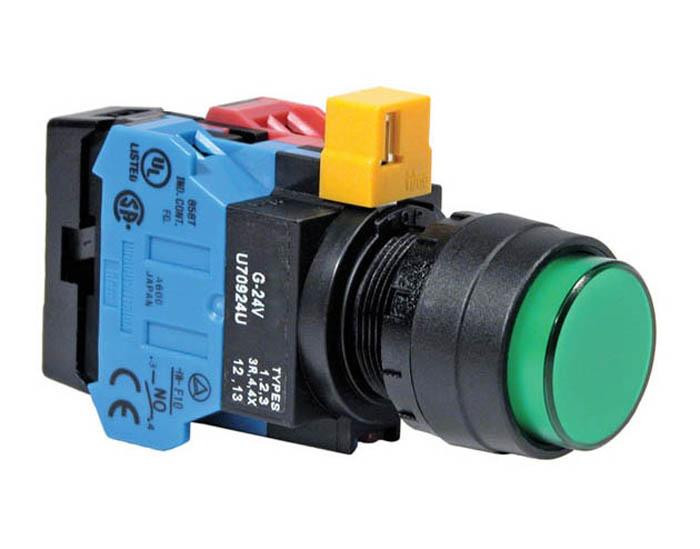

HW1L-MF2F10QD-G-24V

The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.

• Space saving with reduced contact block depth
• IP20 finger-safe protection
• High voltage LED for illuminated pushbuttons
• Can be ordered assembled or in components
• Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
• IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40

Series information:

• HWxB: Non-illluminated
• HWxL: Illuminated

• HW1 - Round black bezel
• HW2 - Square black bezel
• HW4 - Round metal bezel

Assembled units:

• Available in momentary (M) or Maintained (A)
• Contact configurations:
  • 10: 1NO
  • 01: 1NC
  • 11: 1NO/1NC
  • 20: 2NO
  • 02: 2NC
  • 22: 2NO/2NC

Features Include:

• Finger safe (IP20) screw terminals standard
• Accept ring, fork or ferrule terminals and bare wires
• All E-Stops meet EN418 (IEC compliant, positive action)
• UL listed, CSA certified, TUV approved, and CE marked
• Super bright incandescent or LED illumination
• UL Type 4X, IP65
• 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC

• IDEC HW Series Catalog
• IDEC HW Series Accessory Catalog
• IDEC HW Series Dimensional Sheet
• IDEC HW Series Technical Specifications
• IDEC HW Series Installation Instructions
