Advantech
WOP-207K-NAE
Operator Interface, 7" WVGA, 24VDC, 64MB, 128MB(NAND), Serial x 3: 1 x RS-232, 1 x RS-422/485, 1 x RS-485, Ethernet, Front Panel IP66, 189.6 x 144.9 x 36mm (WHD)
$442.00
WOP-210K-NAE
Alt: This is the Recommended Replacement for WOP-2100T-N2AE
$832.00
Operator Interface, 10.1" Display, 24VDC, 64MB, WQVGA, 128MB(NAND), Serialx3, Ethernet, HMI Navi Software, IP66, Panel Mounting, 270.1 x 212.1 x 43.4mm
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Ingress Protection: Front Panel IP66
- Operating Temperature: -20~60 °C (14~140 °F)
- Relative Humidity: 5~95% RH (non-condensing)
- Vibration Protection: 1 Grms, random

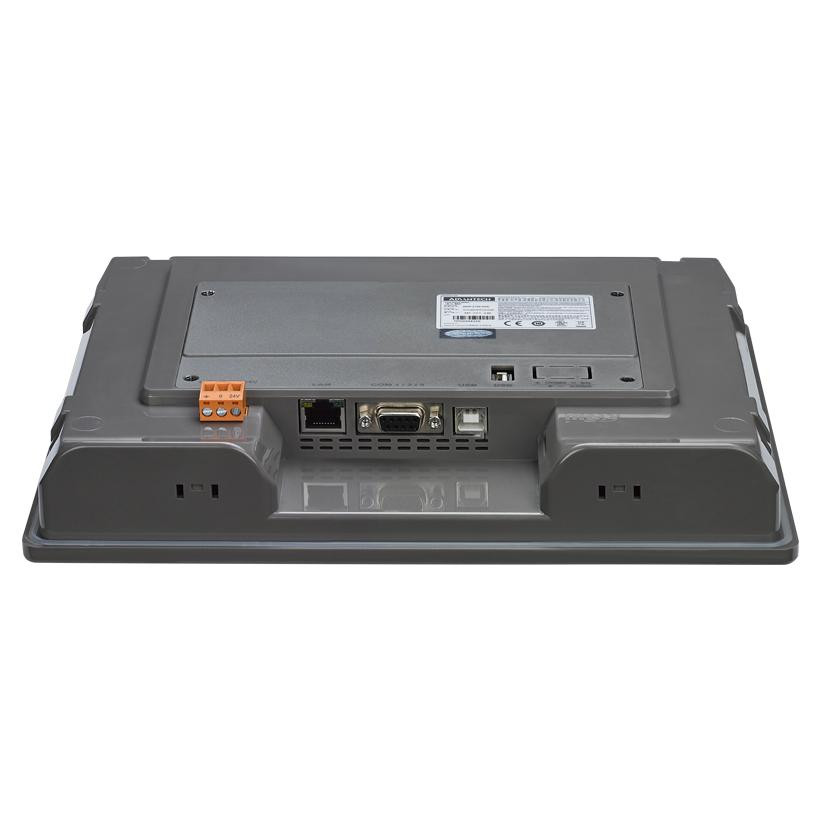

- Connectors: 1 x RJ45, 1 x DB9 female
- Programming Language: HMINavi Designer
- Protocol: 500+ PLC Drivers
- Rated Voltage: 24 VDC (±10%)
- CPU: ARM9™ 32-bit RISC processor
- LAN: 1 x 10/100 Mbps
- Memory: 1 x 64 MB SDRAM
- OS Support: RTOS
- Power Consumption: 20 W @ 24 VDC
- Power Requirement: 24 VDC ±10%
- Storage: 1 x 128M NAND Flash
- Dimension (W x H x D): 270.1 x 212.1 x 43.4 mm
- Enclosure: PC + ABS
- Mounting: Panel
- Supports the HMINavi Designer development tool free on Windows 10
- Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
- No limitation on the internal I/Os points used for variety application
- Easy to switch one application to different LCD sizes in seconds
- Supports operation in both landscape and portrait mode
- Panel mount design ensures easy installation and IP66-rated front panel
Technical Information:
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Advantech
WOP-208K-NAE
Operator Interface, 8" SVGA Operator Panel Installed with HMI RTOS, HMINavi Software, 24VDC, ARM9™ 32-bit RISC Processor with 64 MB SDRAM, 128 MB NAND Flash, Ethernet, Front Panel: IP66, 233 x 176 x 43.3mm (9.17 x 6.93 x 1.7") (WHD)
$728.00
Advantech
WOP-204K-NAE
HMI, 4.3" WQVGA Operator Panel Installed with HMI Navi Software, 64MB, 128MB (NAND), Serial x3, Ethernet
$312.00
Hitachi Drives
WOP
Enhanced Digital Operator, Copy Unit. Large 5 Line High Visibility LCD, Copy Capability, Stores 4 Sets of Inverter Data (Parameters + EzSQ), Multi-Language Capability, Use with NES1 and WJ200 Series, Cable # ICS-1A or ICS-3A to Buy Separately
$241.43
