116505
Alt: CES-I-AP-U-C04-U20-116505
$412.42
Non-Contact Safety Switches CES-I-AP-.-C04-…, Flying Lead
- Weight:
- 1.71 LBS
- Minimum Purchase:
- 1 unit
Description

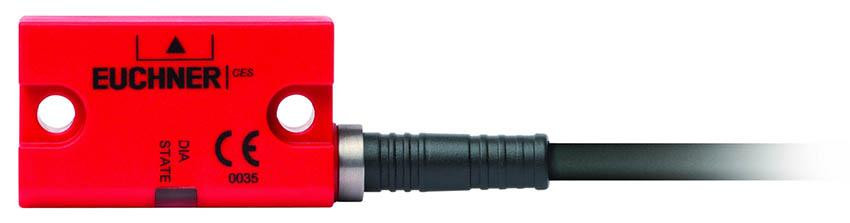

The Euchner CES-AP non-contact safety switch uses transponder coding to monitor the position of movable guards without guard locking. Evaluation electronics are integrated in the switch, and as an AP individual device it connects directly to a safety evaluation unit or safe control system without series connection.
Key Features
- Transponder-coded, non-contact guard monitoring without guard locking
- Integrated evaluation electronics; no series connection (individual device)
- Two redundant semiconductor safety outputs with internal monitoring and short circuit monitoring
- Three active faces for flexible mounting
- Operating voltage 24 V DC
- Unicode versions detect only the taught-in actuator; Multicode versions detect every suitable actuator
Certifications
- Category 4 / PL e according to EN ISO 13849-1 (both safety outputs evaluated)
