MX4W-V-F2

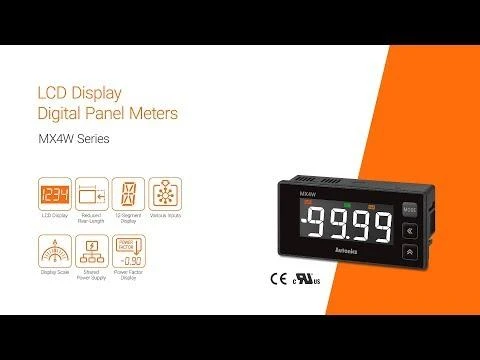

Autonics MX4W series is an LCD display digital panel meter.

The large, easy to read white PV characters (19mm!) are easy to read at any angle and 12-segment displays are useful for displaying various alphanumeric characters.

The input and output terminals are isolated which allows multiple units to be powered by the same power supply. This series also has either DC/AC voltage or DC/AC current input options (by model) for a range of applications.

The compact 20mm rear-length gives you many options for installation in limited spaces.

Additional features:

• Preset output: OUT1, OUT2 (NPN/PNP open collector output)
• Power factor display/output function
• Power supply: 24-240VAC, 59/60HZ, 24-240VDC universal
• 12-segment display

Marshall Wolf Automation is your authorized Autonics distributor!

Features Include:

• Display method: 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method
• Character height: 19mm
• Max. display Range: -9999 to 9999(4digit)
• Measurement: DC current, AC current, Frequency
• Input specification: DC ±500mV, ±200mV, ±50mV, ±20V, ±5V, 1-5V, ±2V, ±500V, ±200V, ±50V, AC 0-500mV, 0-200mV, 0-50mV, 0-20V, 0-5V, 0-2V, 0-500V, 0-200V, 0-110V, 0-50V
• Max. allowable input: DC input: approx. -110 to 110% of each measurement input range (when not using minus input: -10 to 110%), AC input: approx. 110% of each measurement input range
• Power supply: 24-240VAC~ 50/60Hz, 24-240VDC
• Environment Ambient temperature: -10 to 50℃, storage: -20 to 60℃
• Weight: Approx. 100g(approx. 77g)

Technical Information:

• Autonics MX4W Series Panel Meter Datasheet
• Autonics MX4W Series Panel Meter Instruction Manual
• Autonics MX4W Series Panel Meter Technical Description
