Multifunction Digital Timer, 10 Mode, SPDT

More Views

  • Multifunction Digital Timer, 10 Mode, SPDT
  • Multifunction Digital Timer, 10 Mode, SPDT
  • Multifunction Digital Timer, 10 Mode, SPDT

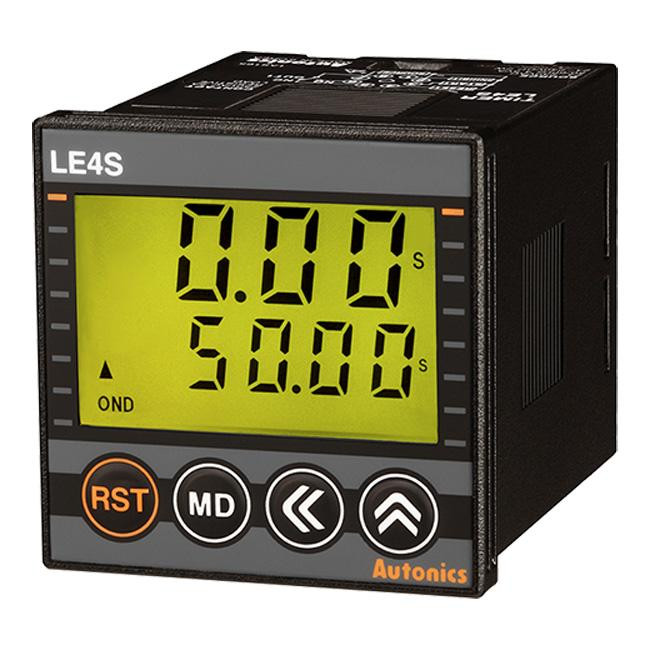

Autonics - LE4S-24-240

Quick Overview

Multifunction Digital Timer, 10 Mode, SPDT. 1/16 DIN, 24-240V AC/DC, .01 Seconds- 9999 Hours
$93.95

Standard Stock

- +

Looking for a low cost digital timer? Our Autonics LE4S is a great solution!

This timer offers a wide range of 0.01 seconds to 9999 hours and a power supply that can handle 24-240VAC or 24-240VDC without changing wiring or jumpers.

Additional Information

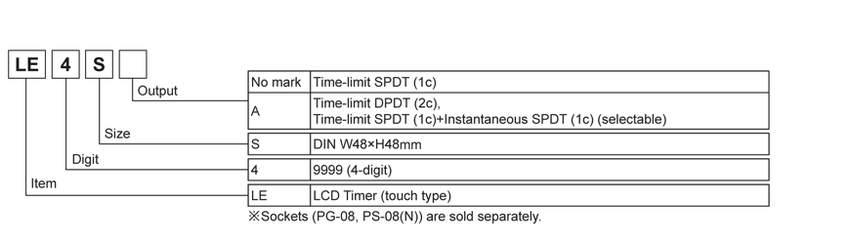

Part Number LE4S-24-240
Product Series LE4S
Analog/Digital Digital
Size 1/16 DIN 48x48mm
Voltage 24-240VAC/DC
Modes 10 Mode
Poles SPDT
Availability Standard Stock
Weight - lbs. 0.2900
Base Unit of Measure Each
Specification Tab
  • Mounting space saving with compact design

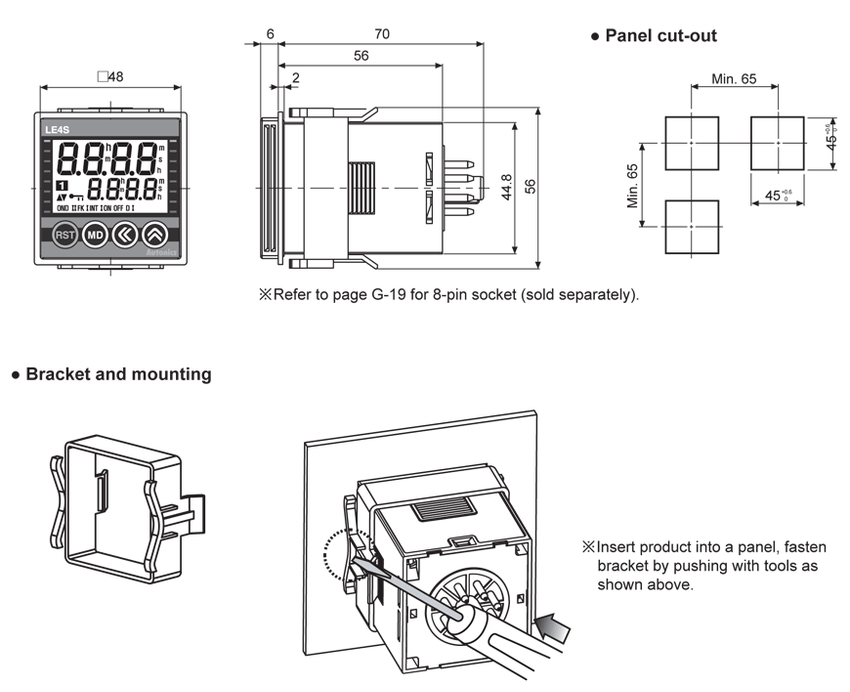

  • downsized by approx. 22% in depth compared to existing models (Length of panel on the back side is 56mm)
  • Available to set each value and time range separately when choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D, ON OFF D I) output mode (existing model: setting value only)
  • Add Flicker 1 mode (LE4SA)
  • Set One-shot output time (0.01~99.99sec) (existing model : Fixed 0.5 sec)
  • Time range is configurable (time setting range to 9.999sec) : Able to set to 0.001sec (existing model : 0.01sec)
  • Choose Min. input signal : 1ms or 20ms (existing model: Fixed 20ms) (LE4S)
  • Improved return time: 100ms (existing model : 300ms, 500ms)
  • Back light ON/OFF function
  • Providing more easy function setting modes
  • Wide time range
  • Lock setting function for saving setting value.
  • Function setting with soft touch
  • High visibility display with back light
  • Wide range of power supply: 24-240VAC 50/60Hz, 24-240VDC
Resources

Need More Information?


  • Mounting space saving with compact design

  • downsized by approx. 22% in depth compared to existing models (Length of panel on the back side is 56mm)

  • Available to set each value and time range separately when choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D, ON OFF D I) output mode (existing model: setting value only)

  • Add Flicker 1 mode (LE4SA)

  • Set One-shot output time (0.01~99.99sec) (existing model : Fixed 0.5 sec)

  • Time range is configurable (time setting range to 9.999sec) : Able to set to 0.001sec (existing model : 0.01sec)

  • Choose Min. input signal : 1ms or 20ms (existing model: Fixed 20ms) (LE4S)

  • Improved return time: 100ms (existing model : 300ms, 500ms)

  • Back light ON/OFF function

  • Providing more easy function setting modes

  • Wide time range

  • Lock setting function for saving setting value.

  • Function setting with soft touch

  • High visibility display with back light

  • Wide range of power supply: 24-240VAC 50/60Hz, 24-240VDC
