VSKTP5008
$96,630.34

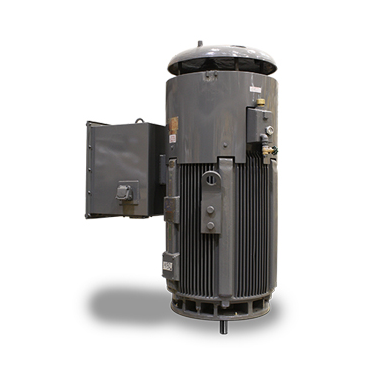

Motor, 500hp, 900 RPM, 5810VP Frame, 2300/4000V, 3 Phase, TEFC, Solid Shaft, IP55
- Weight:
- 7,890.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse TEFC Medium Voltage High Thrust w/P Base series is a medium-voltage, high-thrust vertical hollow-shaft pump motor built on a "P" base for large direct-coupled vertical pump installations, in a totally enclosed fan-cooled (TEFC) enclosure for applications where extra protection from dirt, dust, or moisture is needed.
Key Features
- Totally Enclosed Fan Cooled (TEFC) construction
- Three phase, 60 Hz, 1.15 continuous service factor on sine wave power; inverter duty (PWM) rated per NEMA MG-1, Part 31, at 1.0 service factor
- Vertical hollow-shaft design on a "P" base, built for high-thrust pump loads
- Oversized main conduit box, rotatable in 90-degree increments, fully gasketed with NPT threaded entrance
- Class F insulation with phenolic alkyd resin varnish
- Designed for 3,300 ft elevation
- Standard 120V space heaters
- Oil-lubricated angular contact or spherical thrust bearings with sight glass on larger frames
