6 available from manufacturer (as of 9/21/2026)
VHTP0254
$7,233.79

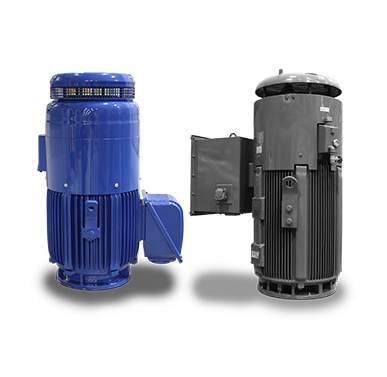

Motor, 25hp, 1800 RPM, 284TP Frame, 230/460VAC, 3 Phase, TEFC, High Thrust, P-Base, IP55
- Weight:
- 520.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse TEFC Low Voltage High Thrust w/P Base series is a high-thrust, vertical hollow-shaft pump motor built on a "P" base for direct-coupled vertical turbine and centrifugal pump applications, in a totally enclosed fan-cooled (TEFC) enclosure for applications where extra protection from dirt, dust, or moisture is needed.
Key Features
- Totally Enclosed Fan Cooled (TEFC) construction
- Three phase, 60 Hz, 1.15 continuous service factor on sine wave power; inverter duty (PWM) rated per NEMA MG-1, Part 31, at 1.0 service factor
- Vertical hollow-shaft design on a "P" base, built for high-thrust pump loads
- Oversized main conduit box, rotatable in 90-degree increments, fully gasketed with NPT threaded entrance
- Class F insulation with phenolic alkyd resin varnish
- Designed for 3,300 ft elevation
- IP55 ingress protection
