VHKP2504
$37,632.00

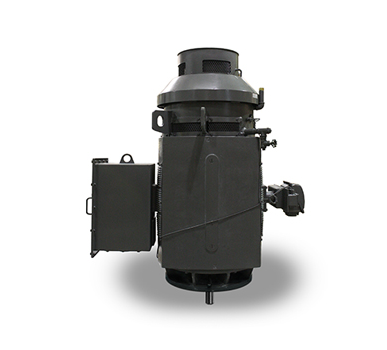

Motor, 250hp, 1800 RPM, 449TP Frame, 2300/4000V, 3 Phase, WPI (Weather Protected Type I), High Thrust, Hollow Shaft
- Weight:
- 3,510.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse WPI Medium Voltage High Thrust w/P Base series is a medium-voltage, high-thrust vertical hollow-shaft pump motor built on a "P" base for large direct-coupled vertical pump installations, in a Weather Protected Type I (WPI) enclosure suited to outdoor or partially protected installations.
Key Features
- Weather Protected Type I (WPI) enclosure
- Three phase, 60 Hz, 1.15 continuous service factor on sine wave power; inverter duty (PWM) rated per NEMA MG-1, Part 31, at 1.0 service factor
- Vertical hollow-shaft design on a "P" base, built for high-thrust pump loads
- Oversized main conduit box, rotatable in 90-degree increments, fully gasketed with NPT threaded entrance
- Class F insulation with phenolic alkyd resin varnish
- Designed for 3,300 ft elevation
- Standard 120V space heaters
- Coupling with Gib key, ball-type non-reverse ratchet, and drip/splash cover
- Oil-lubricated angular contact or spherical thrust bearings with sight glass on larger frames
