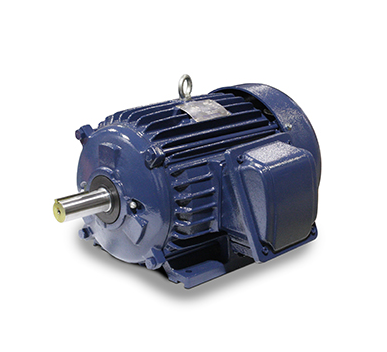

The Teco-Westinghouse Oil Well Pump series is a NEMA Design D motor line engineered specifically for oil well pumping units and other applications requiring high-slip, high-torque performance.
Key Features
NEMA Design D torque
Available in Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) construction
Cast iron frame, end brackets, and main conduit box
1.15 continuous service factor at 60 Hz
Class F insulation, Class B temperature rise
Grounding terminal inside the main conduit box with additional foot-grounding provision
Designed for 40°C ambient temperature and elevations up to 3,300 ft
