QT0406
$4,415.09

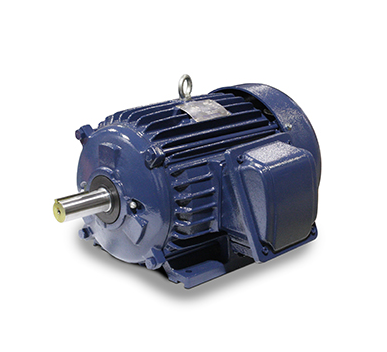

Motor, 40hp, 1200 RPM, 364/365T Frame, 230/460VAC, 3 Phase, TEFC, Oil Well Pump Duty, IP54
- Weight:
- 795.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Oil Well Pump series is a NEMA Design D motor line engineered specifically for oil well pumping units and other applications requiring high-slip, high-torque performance.
Key Features
- NEMA Design D torque
- Available in Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) construction
- Cast iron frame, end brackets, and main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise
- Grounding terminal inside the main conduit box with additional foot-grounding provision
- Designed for 40°C ambient temperature and elevations up to 3,300 ft
