Teco Westinghouse
DHP80045R
Motor, 800hp, 1800 RPM, 5011/5012C Frame, 460VAC, 3 Phase, ODP, NEMA Premium Efficiency, IP22
$53,708.78
1 available from manufacturer (as of 9/28/2026)
P8004
$46,949.53

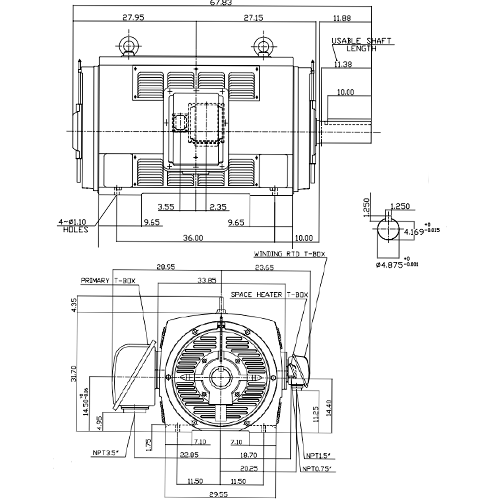

Motor, 800hp, 1800 RPM, 5810B Frame, 2300/4160V, 3 Phase, WPI (Weather Protected Type I)
- Weight:
- 5,828.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Global WPI series is a large-frame, medium-voltage vertical motor line in a Weather Protected Type I (WPI) enclosure, built for heavy industrial pump and process drive applications.
Key Features
- Weather Protected Type I (WPI) enclosure
- Medium-voltage, three-phase, 60 Hz construction
- Large-frame vertical design for heavy-duty industrial installations
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse
DHP80045
Motor, 800hp, 1800 RPM, 5011/5012B Frame, 460VAC, 3 Phase, ODP, NEMA Premium Efficiency, IP22
$53,708.78
Teco Westinghouse
VSKP8004
Motor, 800hp, 1800 RPM, 5810 Frame, 2300/4000V, 3 Phase, WPI (Weather Protected Type I), High Thrust, Solid Shaft
$84,736.44
Teco Westinghouse
VSP8004
Motor, 800hp, 1800 RPM, 5810VP Frame, 460VAC, 3 Phase, WPI (Weather Protected Type I), High Thrust, Solid Shaft
$70,931.74
Teco Westinghouse
VHP8004
Motor, 800hp, 1800 RPM, 5810P Frame, 460VAC, 3 Phase, WPI (Weather Protected Type I), Hollow Shaft, NEMA Premium Efficiency
$76,564.53
