Teco Westinghouse
NP7/56G
Motor, 7.5hp, 1200 RPM, 254T Frame, 230/460VAC, 3 Phase, TEFC, Severe Duty, Inverter Duty, NEMA Premium Efficiency, IP54
$1,278.34
258 available from manufacturer (as of 9/28/2026)
NP7/54G
$811.69
Motor, 7.5hp, 1800rpm, 230/460V, 213T Frame, MAX-PE NEMA Premium Efficiency Severe Duty TEFC, (Cannot Ship UPS, Drop Ship Only Via Truck)
- Weight:
- 166.00 LBS
- Minimum Purchase:
- 1 unit
Description

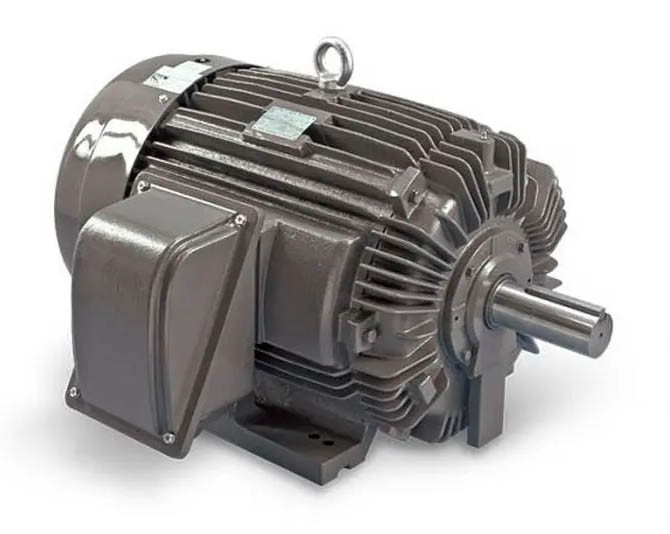

The Teco-Westinghouse MAX-PE series is a NEMA Premium efficiency, totally enclosed fan-cooled (TEFC) motor built for severe-duty applications, especially those driven by variable frequency drives. Every MAX-PE motor ships with a factory-installed AEGIS shaft grounding ring (SGR) to protect bearings from VFD-induced currents.
Key Features
- NEMA Premium efficiency, inverter-duty (PWM) rated
- Factory-installed AEGIS SGR shaft grounding ring for VFD bearing protection
- Cast iron construction for severe-duty durability
- Dual-frequency nameplate: 230/460V at 60 Hz, 190/380V at 50 Hz
- Class F insulation, Class B temperature rise
- NEMA Design B torque, 1.15 continuous service factor
Certifications
- CSA Certified, Class I, Division 2, Groups B, C, D (Temp Code T3C minimum)
