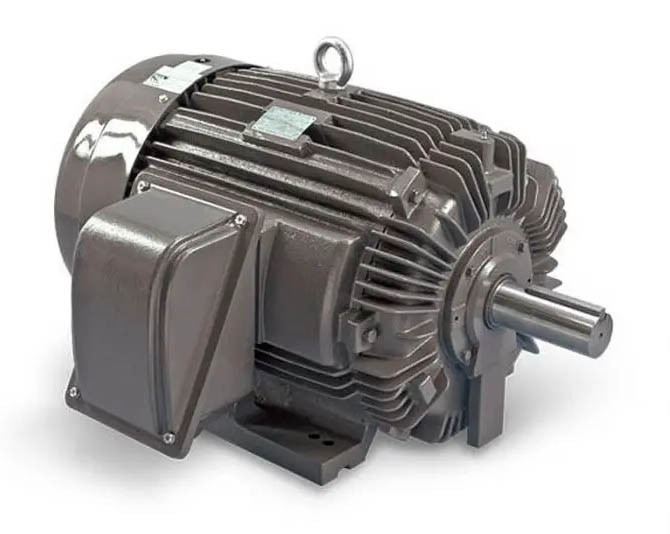

The Teco-Westinghouse MAX-PE series is a NEMA Premium efficiency, totally enclosed fan-cooled (TEFC) motor built for severe-duty applications, especially those driven by variable frequency drives. Every MAX-PE motor ships with a factory-installed AEGIS shaft grounding ring (SGR) to protect bearings from VFD-induced currents.
Key Features
NEMA Premium efficiency, inverter-duty (PWM) rated
Factory-installed AEGIS SGR shaft grounding ring for VFD bearing protection
Cast iron construction for severe-duty durability
Dual-frequency nameplate: 230/460V at 60 Hz, 190/380V at 50 Hz
Class F insulation, Class B temperature rise
NEMA Design B torque, 1.15 continuous service factor
Certifications
CSA Certified, Class I, Division 2, Groups B, C, D (Temp Code T3C minimum)
