Teco Westinghouse
NP0606G
Motor, 60hp, 1200rpm, 6 Pole, 404T Frame, 230/460V, 68.3 FL Amp (460V), NEMA Premium Efficiency, Severe Duty, TEFC-SGR, MAX-PE™ AEGIS® SGR
$6,756.23
4 available from manufacturer (as of 10/19/2026)
NP0606
$5,877.74
Motor, 60hp, 1200 RPM, 404T Frame, 230/460VAC, 3 Phase, TEFC, Severe Duty, Inverter Duty, NEMA Premium Efficiency, IP54
- Weight:
- 1,173.00 LBS
- Minimum Purchase:
- 1 unit
Description

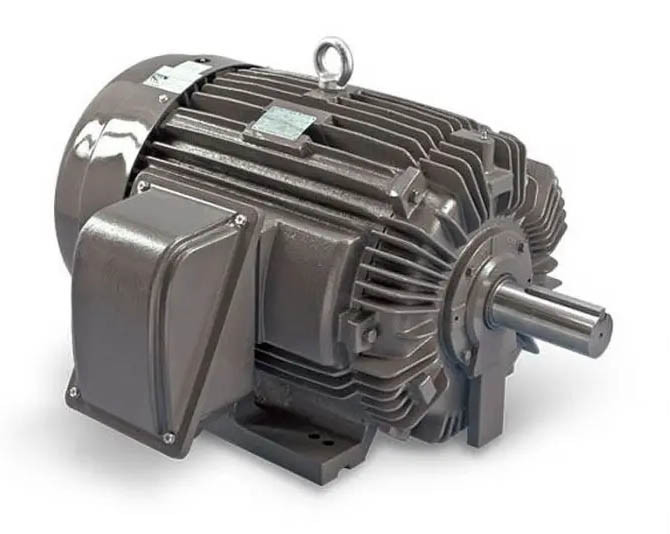

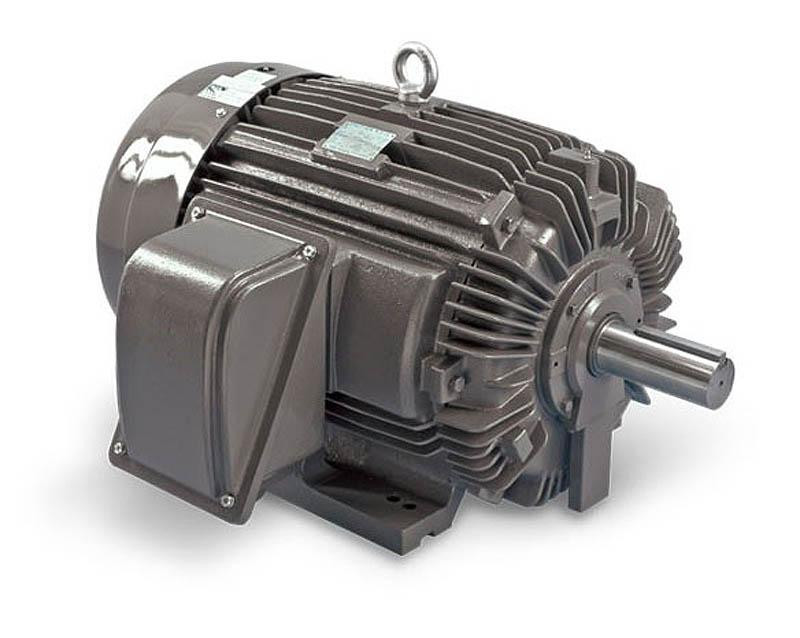

The Teco-Westinghouse MAX-PE series is a NEMA Premium efficiency, totally enclosed fan-cooled (TEFC) motor built for severe-duty applications, especially those driven by variable frequency drives. Every MAX-PE motor ships with a factory-installed AEGIS shaft grounding ring (SGR) to protect bearings from VFD-induced currents.
Key Features
- NEMA Premium efficiency, inverter-duty (PWM) rated
- Factory-installed AEGIS SGR shaft grounding ring for VFD bearing protection
- Cast iron construction for severe-duty durability
- Dual-frequency nameplate: 230/460V at 60 Hz, 190/380V at 50 Hz
- Class F insulation, Class B temperature rise
- NEMA Design B torque, 1.15 continuous service factor
Certifications
- CSA Certified, Class I, Division 2, Groups B, C, D (Temp Code T3C minimum)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse
NP0606C
Motor, 60hp, 1200 RPM, 404TC Frame, 230/460VAC, 3 Phase, TEFC, Severe Duty, C-Face, NEMA Premium Efficiency, IP54
$6,636.68
