Teco Westinghouse
JMP0106
Motor, 10hp, 1200 RPM, 254/256JM Frame, 230/460VAC, 3 Phase, TEFC, Close-Coupled Pump Mount, IP54
$1,653.01
6 available from manufacturer (as of 10/6/2026)
MP0106
$1,340.93

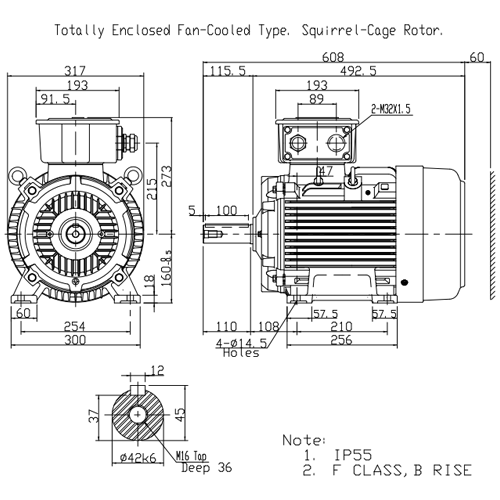

Motor, 10hp, 1200 RPM, 160M Frame, 230/460VAC, 3 Phase, TEFC, IP55
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

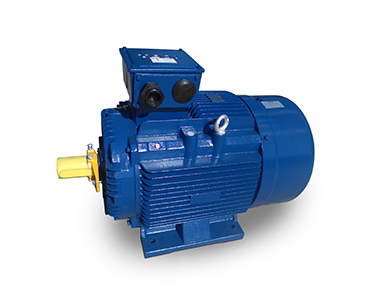

The Teco-Westinghouse MAX-IE3 Metric series is an IE3 premium-efficiency, totally enclosed fan-cooled (TEFC) motor line built to IEC metric frame dimensions for industrial applications requiring a compact, metric-frame solution.
Key Features
- IE3 premium efficiency, IEC metric frame dimensions
- Totally Enclosed Fan Cooled (TEFC), cast iron construction
- Inverter duty rated
- Dual-frequency nameplate: 230/460V at 60 Hz, 190/380V at 50 Hz
- Class F insulation, Class B temperature rise
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$1,147.99
Teco Westinghouse
DJMP0106FP
Motor, 10hp, 1200 RPM, 254/256JM Frame, 230/460VAC, 3 Phase, ODP, Fire Pump, IP22
$1,351.25
