EPY4008
$57,292.98

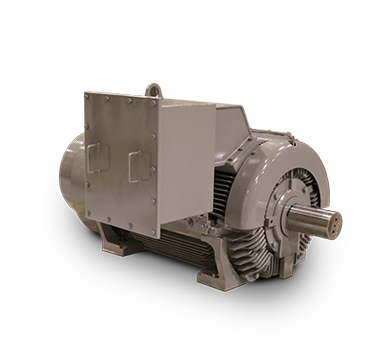

Motor, 400hp, 900 RPM, 5808UZ Frame, 460VAC, 3 Phase, Keyless Shaft, NEMA Premium Efficiency, IP55
- Weight:
- 42,840.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Keyless Shaft series is a totally enclosed fan-cooled (TEFC) motor line built with an SCM440 quenched-and-tempered keyless oversized shaft for high-torque industrial drive applications.
Key Features
- Totally Enclosed Fan Cooled (TEFC), cast iron frame, end brackets, fan cover, and main conduit box
- SCM440 quenched-and-tempered keyless oversized shaft
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise, NEMA Design B torque
- Grounding terminal inside the main conduit box
- Designed for 40°C ambient temperature and elevations up to 3,300 ft
Certifications
- CSA Certified, Class I, Division 2, Groups B, C, D (Temp Code T3 minimum)
- CSA Certified, Class II, Division 2, Groups F and G (Temp Code T3 minimum)
