Teco Westinghouse
EP0754
Motor, 75hp, 1800 RPM, 364/365T Frame, 230/460VAC, 3 Phase, TEFC, Severe Duty, NEMA Premium Efficiency, IP55
$5,660.83
2 available from manufacturer (as of 9/28/2026)
EP0754S
$5,660.83
Motor, 75hp, 1800 RPM, 364/365TS Frame, 230/460VAC, 3 Phase, TEFC, Severe Duty, NEMA Premium Efficiency, IP55
- Weight:
- 1,045.00 LBS
- Minimum Purchase:
- 1 unit
Description

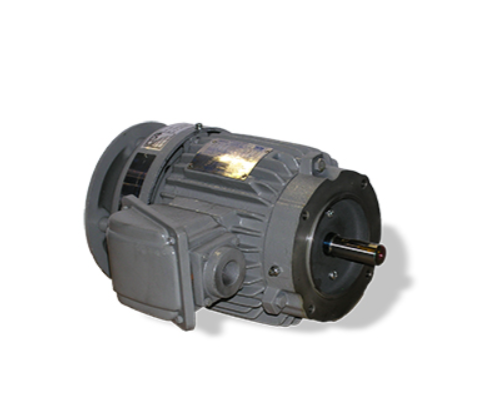

The Teco-Westinghouse MAX-E1 series is a NEMA Premium efficiency, totally enclosed fan-cooled (TEFC) motor line built for demanding industrial and severe-duty environments. Available from 3/4 to 800 HP across a wide range of frame sizes and speeds, MAX-E1 motors work equally well in general-purpose applications and in tougher settings like crushing, grinding, and pulp and paper processing.
Key Features
- NEMA Premium efficiency across the full 3/4 – 800 HP range
- 3600, 1800, 1200, and 900 RPM speeds available
- Voltage: 230/460V (usable on 208V); 150 HP and larger rated 460V only, with 575V also available
- IP54 enclosure rating for 280 frame and smaller, IP55 for 280TS frame and larger
- Cast iron frame and end brackets for severe-duty durability
- Non-sparking, non-static cooling fan
- NEMA Design B torque as standard, 1.15 continuous service factor
- Suited to crushers, grinders, compressors, water and wastewater equipment, mixers, positive displacement pumps, material handling, warehouse automation, and commercial washing equipment
Certifications
- CSA Certified, Class I, Division 2, Groups B, C and D
