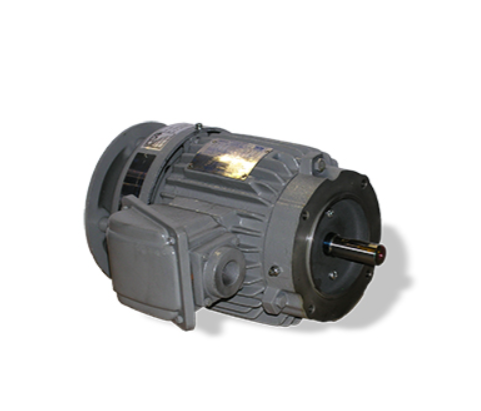

Motor, 50hp, 3600rpm, 2-Pole, 230/460V, 54.7FL A, 60Hz, 326TS(X) Frame, Three Phase Induction, MAX E1 NEMA Premium Efficiency Severe Duty TEFC, (Cannot Ship UPS, Drop Ship Only Via Truck)
SKU:
EP0502
Weight:
815.00 LBS
Minimum Purchase:
1 unit
NEMA Premium severe-duty TEFC motors built for demanding industrial applications
The Teco-Westinghouse MAX-E1 series is a NEMA Premium efficiency, totally enclosed fan-cooled (TEFC) motor line built for demanding industrial and severe-duty environments. Available from 3/4 to 800 HP across a wide range of frame sizes and speeds, MAX-E1 motors work equally well in general-purpose applications and in tougher settings like crushing, grinding, and pulp and paper processing.
Key Features
NEMA Premium efficiency across the full 3/4 – 800 HP range
3600, 1800, 1200, and 900 RPM speeds available
Voltage: 230/460V (usable on 208V); 150 HP and larger rated 460V only, with 575V also available
IP54 enclosure rating for 280 frame and smaller, IP55 for 280TS frame and larger
Cast iron frame and end brackets for severe-duty durability
Non-sparking, non-static cooling fan
NEMA Design B torque as standard, 1.15 continuous service factor
Suited to crushers, grinders, compressors, water and wastewater equipment, mixers, positive displacement pumps, material handling, warehouse automation, and commercial washing equipment
Certifications
CSA Certified, Class I, Division 2, Groups B, C and D
