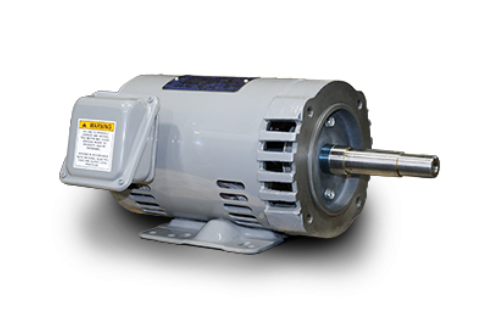

The Teco-Westinghouse Rolled Steel JP/JM NEMA Premium series is a lightweight, close-coupled pump motor line built on a durable rolled steel frame for commercial-duty pump, HVAC, and compressor applications where dirt and moisture are minimal.
Key Features
NEMA Premium efficiency, inverter-duty rated
Open Drip Proof (ODP) enclosure
NEMA JM (footless) or JP (footed) close-coupled pump frame configurations
Rolled steel frame and main conduit box
Grounding terminal inside the main conduit box
1.15 continuous service factor at 60 Hz
Class F insulation, Class B temperature rise
NEMA Design B torque
Designed for 40°C ambient temperature
Suited to HVAC, compressors, and general commercial-duty pump applications
