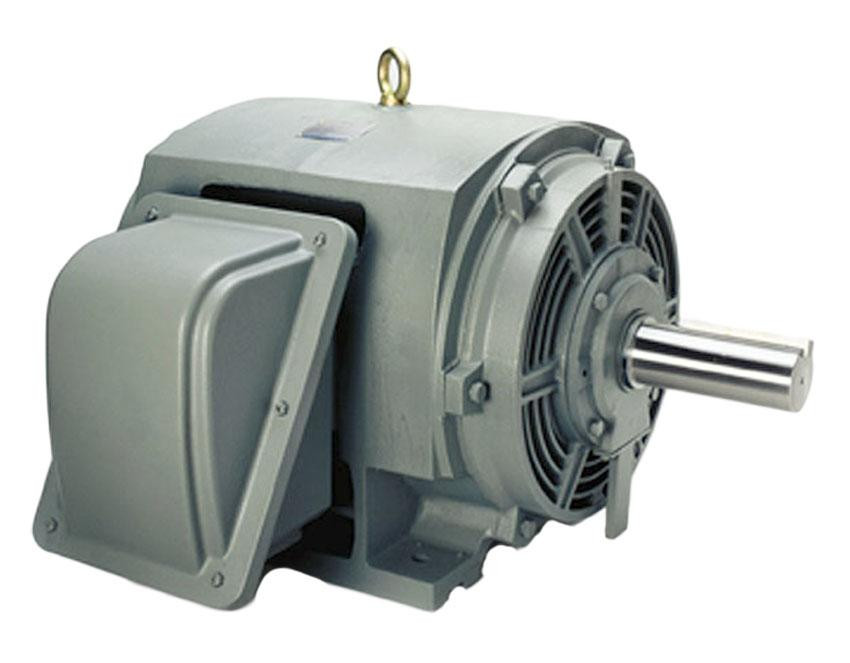

The Teco-Westinghouse Cast Iron ODP NEMA Premium series is a general-purpose, open drip-proof motor line built on a durable cast iron frame for reliable continuous duty in indoor and protected industrial environments.
Key Features
NEMA Premium efficiency
Open Drip Proof (ODP) enclosure
Cast iron frame and end brackets
Rolled steel main conduit box, rotatable in 90-degree increments, F1 mounted
Grounding terminal inside the main conduit box
1.15 continuous service factor at 60 Hz
Class F insulation, Class B temperature rise
NEMA Design B torque
Designed for 40°C ambient temperature and elevations up to 3,300 ft
Bi-directional rotation with a 1045 carbon steel shaft
