Teco Westinghouse
DHP0306G

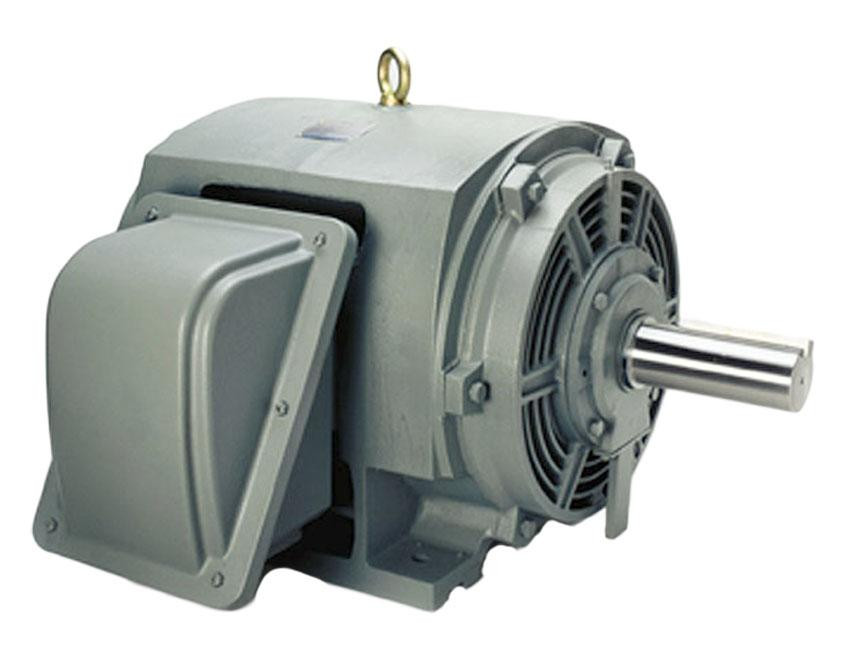

Motor, 30hp, 1200 RPM, 326T Frame, 230/460VAC, 3 Phase, ODP, NEMA Premium Efficiency, IP22
$2,757.45
8 available from manufacturer (as of 9/28/2026)
DHP0306
$2,449.57
Motor, 30hp, 1200rpm, 6 Pole, 326T Frame, 230/460V, 60Hz, Three Phase, ODP, Cast Iron, IP22 (Must Ship LTL)
- Weight:
- 568.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Cast Iron ODP NEMA Premium series is a general-purpose, open drip-proof motor line built on a durable cast iron frame for reliable continuous duty in indoor and protected industrial environments.
Key Features
- NEMA Premium efficiency
- Open Drip Proof (ODP) enclosure
- Cast iron frame and end brackets
- Rolled steel main conduit box, rotatable in 90-degree increments, F1 mounted
- Grounding terminal inside the main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise
- NEMA Design B torque
- Designed for 40°C ambient temperature and elevations up to 3,300 ft
- Bi-directional rotation with a 1045 carbon steel shaft
