38 available from manufacturer (as of 10/12/2026)
DHP0302G
$1,836.68

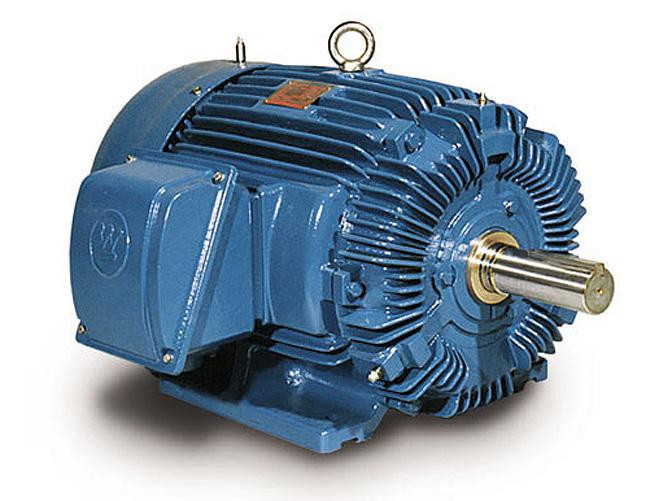

Motor, 30hp, 3600rpm, 2-Pole, 230/460V, 33.6FL A, 60Hz, 284TS Frame, Three Phase Induction, NEMA Premium Efficiency ODP with SGR, (Cannot Ship UPS, Drop Ship Only Via Truck)
- Weight:
- 405.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Cast Iron ODP NEMA Premium series is a general-purpose, open drip-proof motor line built on a durable cast iron frame for reliable continuous duty in indoor and protected industrial environments.
Key Features
- NEMA Premium efficiency
- Open Drip Proof (ODP) enclosure
- Cast iron frame and end brackets
- Rolled steel main conduit box, rotatable in 90-degree increments, F1 mounted
- Grounding terminal inside the main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise
- NEMA Design B torque
- Designed for 40°C ambient temperature and elevations up to 3,300 ft
- Bi-directional rotation with a 1045 carbon steel shaft
