Teco Westinghouse
DHP0156G

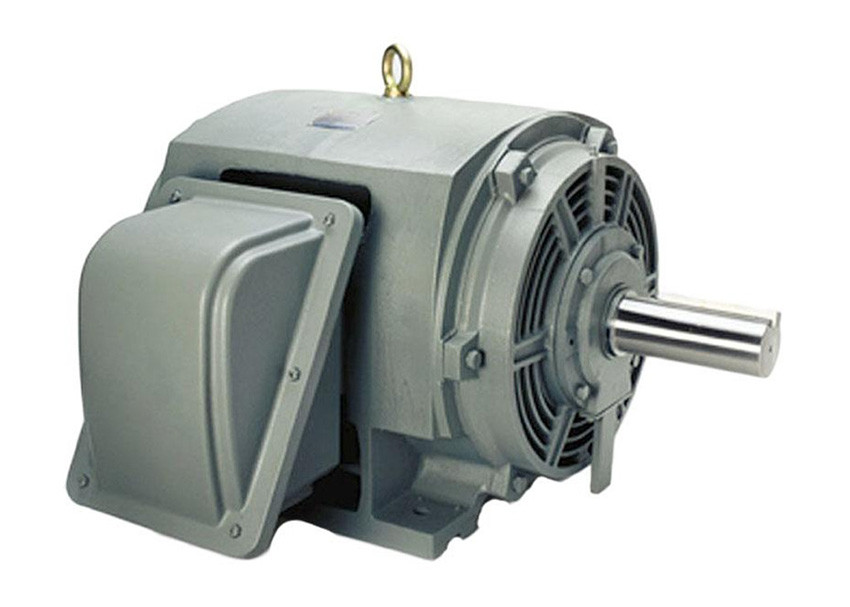

Motor, 15hp, 1200 RPM, 284T Frame, 230/460VAC, 3 Phase, ODP, NEMA Premium Efficiency, IP22
$1,629.09
DHP0156
$1,412.53
Motor NEMA Premium Efficiency, 15HP, 1200RPM, 230/460V, Frame 284T
- Weight:
- 367.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse Cast Iron ODP NEMA Premium series is a general-purpose, open drip-proof motor line built on a durable cast iron frame for reliable continuous duty in indoor and protected industrial environments.
Key Features
- NEMA Premium efficiency
- Open Drip Proof (ODP) enclosure
- Cast iron frame and end brackets
- Rolled steel main conduit box, rotatable in 90-degree increments, F1 mounted
- Grounding terminal inside the main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise
- NEMA Design B torque
- Designed for 40°C ambient temperature and elevations up to 3,300 ft
- Bi-directional rotation with a 1045 carbon steel shaft
