1 available from manufacturer (as of 9/21/2026)
CDP2008RZ
$37,271.03
Motor, 200hp, 900 RPM, 586/7UZ Frame, 460VAC, 3 Phase, Crusher Duty, IP55
- Weight:
- 4,460.00 LBS
- Minimum Purchase:
- 1 unit
Description

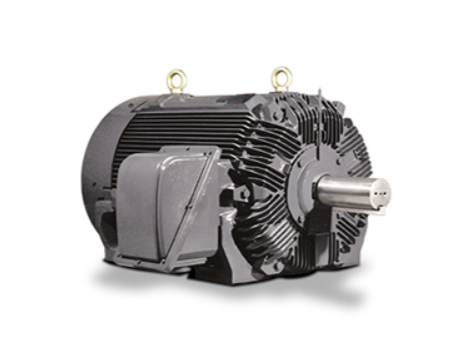

The Teco-Westinghouse MAX-HT series is a totally enclosed fan-cooled (TEFC) crusher-duty motor line engineered for crushers, impactors, chippers, shredders, ball mills, rolling mills, and other high-torque, high-shock-load applications.
Key Features
- NEMA Design C torque: 150–200% starting torque, 250% breakdown torque, for high-shock-load starting
- Cast iron frame and end brackets, with a pressed steel plate main conduit box and fan cover
- Class F insulation, Class B temperature rise
- 1.15 continuous service factor at 60 Hz (some ratings up to 1.25 SF)
- Grounding terminal inside the main conduit box, with an additional foot-grounding provision
- Available in both low-voltage (230/460V) and medium-voltage (2300/4000V) configurations
- Suited to across-the-line and Y-delta starting
Certifications
- CSA Certified, Class I, Division 2, Groups B, C, D (Temp Code T3 minimum)
