AE15-0750-2400-AAAS-AA40

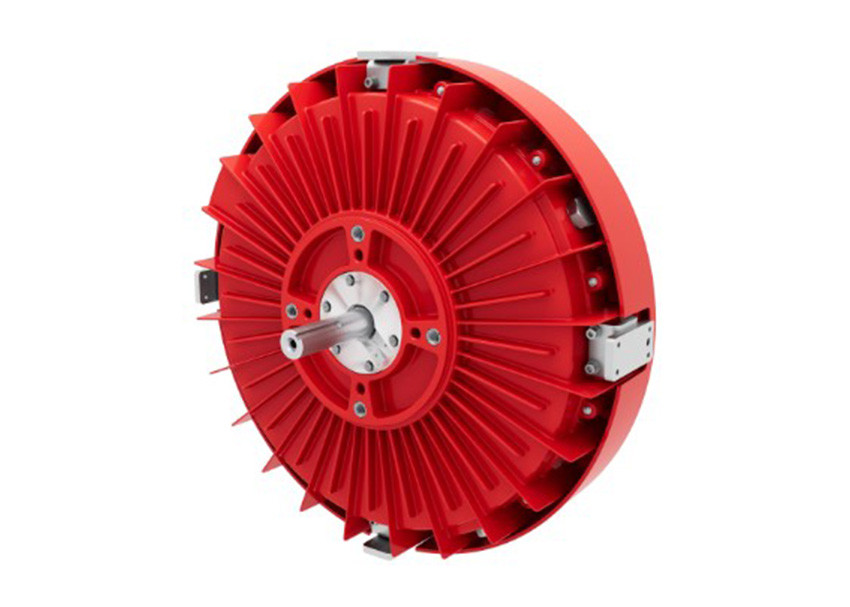

Sprecher Schuh_Aircore_Primary.jpg
Sprecher Schuh_Aircore_Image2.jpg
Sprecher and Schuh

AE15-0750-2400-AAAS-AA40

$3,515.41

Motor with Integrated VFD, 460VAC, 3 Phase, 7.5hp, 5.59kW, 2400rpm, 60Hz Input, 0-10V / 0-20mA, 24VDC Digital Inputs, Modbus, Analog Input, C-Face Mounting 15 Frame, 3.3" Shaft, Steel Bearings, TEFC Enclosure, Standard, Aircore EC, IP54

Weight:
85.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Motor + VFD Combo!
Sprecher Schuh_Aircore_Primary.jpg
Sprecher Schuh_Aircore_Image2.jpg
Sprecher Schuh_Aircore_Primary.jpg
Sprecher Schuh_Aircore_Image2.jpg
Description

Introducing Infinitum’s Next-Generation Integrated Motor and Drive Systems - A game-changing solution for modern industrial applications, these motors combine powerful performance, smart control, and unmatched energy efficiency in a compact, lightweight design.

Key Features

All-in-One Integration

  • Built-in Variable Frequency Drive (VFD) for precise speed control
  • Seamless integration reduces installation time and footprint
  • Ideal for fan, pump, and HVAC applications

Maximum Efficiency

  • Up to 10% more efficient than traditional AC induction motors
  • Delivers increased performance across a wide range of load conditions
  • Reduces energy usage and operating costs

Quiet, Compact Power

  • 50% lighter and 30% quieter than conventional motors
  • 50% smaller form factor for easier installation
  • High power density in a compact package

Sustainable by Design

  • PCB stator uses 66% less copper
  • 10x more reliable than iron-core, copper-wound stators
  • Lightweight housing reduces transportation emissions by 30%
  • Modular design extends product lifespan and enables component reuse

Smart Control & Flexibility

  • Integrated I-con software for application-specific tuning
  • Eliminates torque ripple, cogging, and core losses
  • Operates at optimized frequencies to reduce audible noise

Technical Specifications

Electrical

  • Voltage: 460 VAC (±10%), 3-phase
  • Input Frequency: 60 Hz
  • Analog References: 0–10 V, 0–20 mA
  • Digital Inputs: 24 VDC

Mechanical

  • Enclosure: TEFC/IP54 (Standard), IP65 (Heavy Duty)
  • Mounting: Frame, C-face
  • Relative Humidity: 95% non-condensing
  • Elevation: Up to 1000m (de-rate above 1000m)
