Weg
00158ET3V145TC-W22
Motor, 1.5hp, 1800rpm, 4-Pole, 3 Phase, 200-208/400VAC, 60Hz, 143/5TC Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22, IP55
$515.31
Available from manufacturer (as of 10/20/2026)
45018ET3GRB449T-W22
$42,728.90
Motor, 450hp, 1800rpm, 4-Pole, 3 Phase, 460VAC, 60Hz, L447/9T Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/No Flange, W22, Roller Bearings, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 3,703.48 LBS
- Minimum Purchase:
- 1 unit
Description

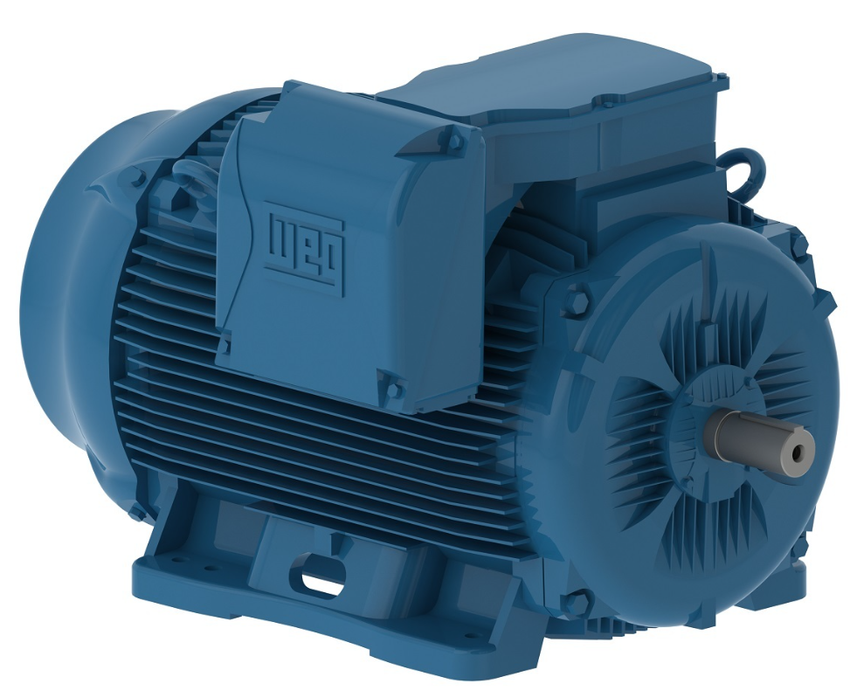

The WEG W22 TEFC motor line is built on a cast iron frame with solid, full-length feet and is designed for lower noise and cooler operation for general-purpose industrial applications. The line includes NEMA Premium and Super Premium Efficiency ratings.
Key Features
- Cast iron frame with solid feet for rigid mounting and reduced vibration
- 1.25 service factor through 100hp; 1.15 service factor on larger ratings
- Built to NEMA MG-1 standards
- Ratings from 1hp to 700hp
- 3600, 1800, 1200, 900 rpm synchronous speed options
- Three phase design
- Voltage options include 230/460V, 460V, 575V, 208-230/460V, 200-208/400V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Super Premium Efficiency levels
- Frame sizes from 143/5TC to 588/9TS
- Mounting options include footed, footless round body with C-face and footed with C-face
- Roller bearings on select models
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
20018ET3G447T-W22
Motor W22 Series NEMA Premium Efficiency 200HP, 1800 rpm, 4 Pole, 445/7T 3Ph, 460V, 60Hz, IC411 - TEFC - Foot-mounted, IP55
$18,777.22
Weg
00118ES1E143JM-W22
Motor, 1hp, 1800rpm, 4-Pole, Single Phase, 208-230/460VAC, 60Hz, 143/5JM Frame, Standard Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22 Close-Coupled Pump, IP55
$611.43
Weg
00218NT3FVD145TC-W22
Motor, 2hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 143/5TC Frame, NEMA Premium Efficiency, IC410 TENV, Cast Iron, Footed/C-Flange, Vector Duty, IP55
$825.92
Weg
00336ET3H145JM-W22
Motor, 3hp, 3600rpm, 2-Pole, 3 Phase, 575VAC, 60Hz, 143/5JM Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22 Close-Coupled Pump, IP55
$679.96
