Weg
00712OT3V254T-W40
Motor, 7.5hp, 1200rpm, 6-Pole, 3 Phase, 200-208/400VAC, 60Hz, 254T Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/No Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,305.63
Available from manufacturer (as of 10/16/2026)
10018OT3E404TC-W40
Alt: This Item Replaced 10018OT3E404TC
$6,752.43
Motor, 100hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 404/5TC Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/C-Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 1,189.92 LBS
- Minimum Purchase:
- 1 unit
Description

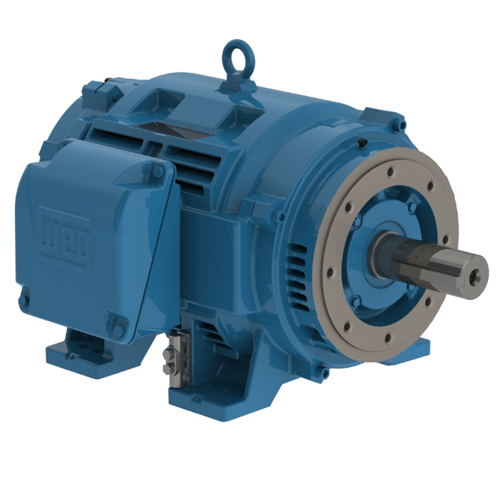

The WEG W40 open drip proof (ODP) motor platform is designed as a compact, lightweight solution for industrial applications. It provides open drip proof cooling in NEMA Premium Efficiency ratings.
Key Features
- Compact, lightweight ODP platform
- IC01 open drip proof cooling
- Built to NEMA MG-1 standards
- Ratings from 7.5hp to 800hp
- 3600, 1800, 1200 rpm synchronous speed options
- Three phase design
- Voltage options include 230/460V, 460V, 575V, 200-208/400V, 200-208V
- Open drip proof (ODP) enclosure
- NEMA Premium Efficiency
- Frame sizes from 254T to 5010/11TS
- Mounting options include footed and footed with C-face
- Roller bearings on select models
- IP23 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00712OT3E254T-W40
Motor, 7.5hp, 1200rpm, 6-Pole, 3 Phase, 230/460VAC, 60Hz, 254T Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/No Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,305.63
Weg
02018OT3H256T-W40
Motor, 20hp, 1800rpm, 4-Pole, 3 Phase, 575VAC, 60Hz, 254/6T Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/No Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,630.48
Weg
01518OT3H254TC-W40
Motor, 15hp, 1800rpm, 4-Pole, 3 Phase, 575VAC, 60Hz, 254TC Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/C-Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,375.05
Weg
01012OT3E256T-W40
Motor, 10hp, 1200rpm, 6-Pole, 3 Phase, 230/460VAC, 60Hz, 254/6T Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/No Flange, W40, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,528.13
