Weg
00512ET3E215T-W22
Motor, 5hp, 1200rpm, 3 Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$1,185.48
Available from manufacturer (as of 11/14/2026)
04018ET3E324TCF2-W22
$3,827.00
Motor, 40hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 324TC Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22, F-2 Mounting, Right Terminal Box, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 683.55 LBS
- Minimum Purchase:
- 1 unit
Description

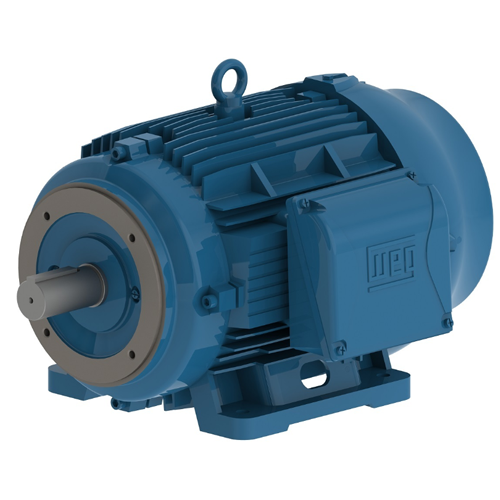

The WEG W22 TEFC motor line is built on WEG's cast iron W22 platform for general-purpose industrial drives such as pumps, fans, compressors, and conveyors. These three phase motors pair a totally enclosed fan cooled design with NEMA Premium or Super Premium Efficiency, and they are inverter duty rated for use with variable frequency drives.
Key Features
- Cast iron frame construction for rigid, low-vibration mounting
- Totally enclosed fan cooled (TEFC) design with IP55 protection against dust and water
- NEMA Premium Efficiency, with NEMA Super Premium Efficiency ratings also offered
- Inverter duty per NEMA MG1 Part 31 for variable frequency drive applications
- Three phase, 60Hz operation
- Select catalog numbers include an AEGIS bearing protection ring or roller bearings
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
01012ET3E256TC-W22
Motor, 10hp, 1200rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$2,193.85
Weg
01536ET3H254TC-W22
Motor, 15hp, 3600rpm, 3 Phase, 575V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$1,684.77
Weg
01518ET3H254T-W22
Motor, 15hp, 1800rpm, 3 Phase, 575V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$1,644.72
Weg
01518ET3E254T-W22
Motor, 15hp, 1800rpm, 3 Phase, 208-230/460V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$1,644.72
