03036OT3E284JM-W40
Available from manufacturer (as of 10/30/2026)
Weg

03036OT3E284JM-W40

Alt: This Item Replaced 03036OT3E284JM

$2,834.65

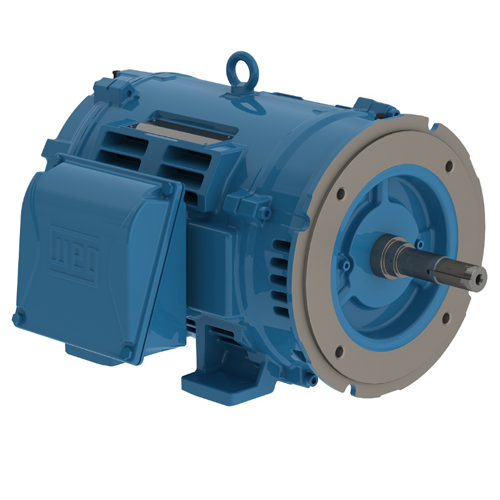

Motor, 30hp, 3600rpm, 2-Pole, 3 Phase, 230/460VAC, 60Hz, 284JM Frame, NEMA Premium Efficiency, IC01 ODP, Cast Iron, Footed/C-Flange, W40 Close-Coupled Pump, IP23, (Cannot Ship UPS, Drop Ship Only via Truck)

Weight:
352.51 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
WEG W40 ODP JM and JP motors for close-coupled pumps
Description

The WEG W40 Close-Coupled Pump motor line pairs the compact W40 open drip proof platform with JM and JP pump shafts for direct-drive close-coupled pump applications.

Key Features

  • Designed for direct-drive close-coupled pumps
  • JM and JP shaft configurations
  • Open drip proof (ODP) design
  • Ratings from 20hp to 100hp
  • 3600, 1800, 1200 rpm synchronous speed options
  • Three phase design
  • Voltage options include 230/460V, 200-208/400V, 575V
  • Open drip proof (ODP) enclosure
  • High Efficiency and NEMA Premium Efficiency levels
  • Frame sizes from 254/6JM to 404/5JP
  • Mounting options include footed with C-face and footless with C-face
  • IP23 degree of protection
