03018ET3E286JM-W22
Available from manufacturer (as of 10/20/2026)
Weg

03018ET3E286JM-W22

$3,645.44

Motor, 30hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 284/6JM Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22 Close-Coupled Pump, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)

Weight:
507.43 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

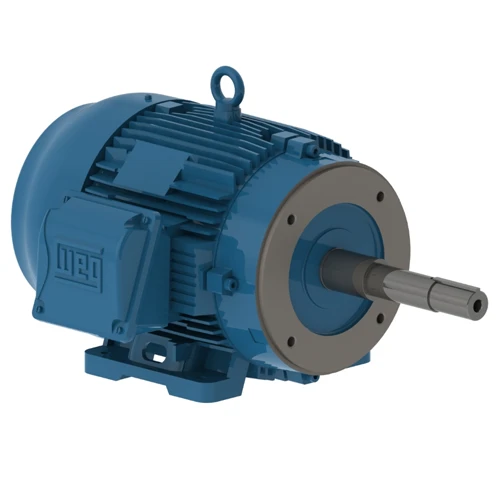

WEG W22 JM and JP close-coupled pump motors for direct drive
Description

The WEG W22 Close-Coupled Pump motor line was developed specifically for direct-drive pumps in both JM and JP versions. JM motors use a shorter shaft that limits vibration and radial movement to help extend pump seal life, while JP motors use a longer shaft.

Key Features

  • Designed for direct-drive close-coupled pumps
  • JM and JP shaft configurations
  • Cast iron W22 frame construction
  • Ratings from 1hp to 100hp
  • 3600, 1800, 1200 rpm synchronous speed options
  • Single phase and three phase models
  • Voltage options include 230/460V, 208-230/460V, 575V, 200-208/400V, 208-230V
  • Totally enclosed fan cooled (TEFC) enclosure
  • NEMA Premium Efficiency and Standard Efficiency levels
  • Frame sizes from 143/5JM to 404/5JP
  • Footed with C-face mounting
  • IP55 degree of protection
  • AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
