Weg
.3318OT3E56CFL-S
Motor, 1/3hp, 1800rpm, 4-Pole, 3 Phase, 208-230/460VAC, 60Hz, 56C Frame, Premium Efficiency, IC01 ODP, Rolled Steel, Footless/C-Flange
$252.76
Available from manufacturer (as of 10/28/2026)
02536ET3H256JM-S
$2,875.59

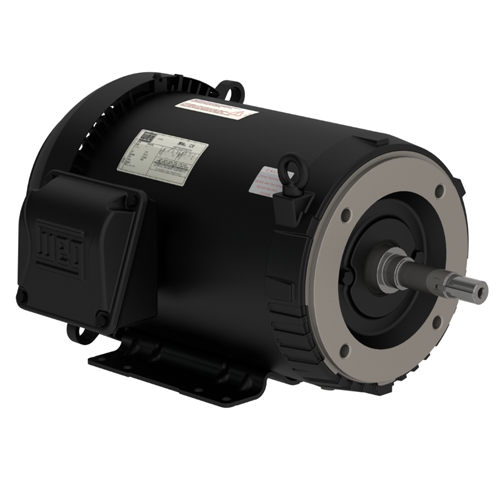

Motor, 25hp, 3600rpm, 2-Pole, 3 Phase, 575VAC, 60Hz, 254/6JM Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/C-Flange, Rolled Steel Close-Coupled Pump, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 264.40 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG Rolled Steel Close-Coupled Pump motor line combines a lightweight rolled steel frame with JM and JP pump shafts for direct-drive close-coupled pump applications.
Key Features
- Designed for direct-drive close-coupled pumps
- Lightweight rolled steel frame
- Ratings from 1hp to 25hp
- 3600, 1800, 1200 rpm synchronous speed options
- Single phase and three phase models
- Voltage options include 230/460V, 575V, 200/400V, 115/208-230V, 208-230V
- Available in open drip proof (ODP) and totally enclosed fan cooled (TEFC) enclosures
- High Efficiency and NEMA Premium Efficiency and Standard Efficiency levels
- Frame sizes from 143/5JM to 254/6JP
- Mounting options include footed with C-face and footless with C-face
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
.3318OT1BW56CFL-S
Motor, 1/3hp, 1800rpm, 4-Pole, Single Phase, 115/208-230VAC, 60Hz, W56C Frame, NEMA Premium Efficiency, IC01 ODP, Rolled Steel, Footless/C-Flange
$269.67
Weg
.3336OT1BW56CFL-S
Motor, 1/3hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, W56C Frame, NEMA Premium Efficiency, IC01 ODP, Rolled Steel, Footless/C-Flange
$253.65
Weg
.2518OT3E56C-S
Motor, 1/4hp, 1800rpm, 4-Pole, 3 Phase, 208-230/460VAC, 60Hz, 56C Frame, Premium Efficiency, IC01 ODP, Rolled Steel, Footed/C-Flange
$234.07
Weg
.3336ES1BJPW56J-S
Motor, 1/3hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, W56J Frame, Standard Efficiency, IC411 TEFC, Rolled Steel, Footed/No Flange, Jet Pump, JJ Threaded Shaft, IP55
$250.98
