Weg
01536ET3ER254TC-W22
Motor, 15hp, 3600rpm, 2-Pole, 3 Phase, 230/460VAC, 60Hz, 254TC Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footless Round Body/C-Flange, W22, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,735.50
01536ET3ER254TC-S
Alt: This Item Replaced 01536EP3ER254TC-S
$1,467.61

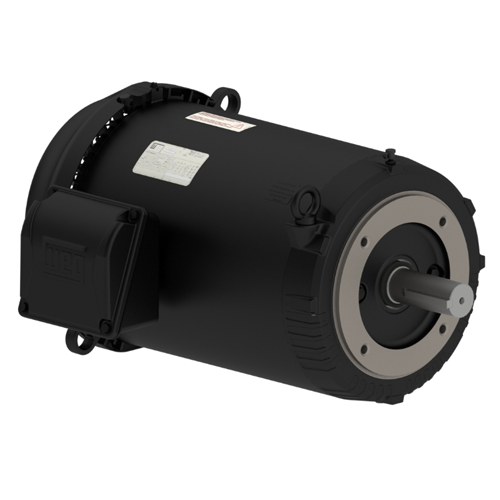

Motor, 15hp, 3600rpm, 2-Pole, 3 Phase, 230/460VAC, 60Hz, 254/6TC Frame, NEMA Premium Efficiency, IC411 TEFC, Rolled Steel, Footless Round Body/C-Flange, W01, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 231.14 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W01 Rolled Steel TEFC motor line is built for applications that need performance, robustness, and light weight in one product. Its rolled steel frame keeps weight down in a totally enclosed design.
Key Features
- Lightweight rolled steel frame
- Totally enclosed fan cooled (TEFC) design
- Ratings from 1hp to 25hp
- 3600, 1800, 1200 rpm synchronous speed options
- Single phase and three phase models
- Voltage options include 230/460V, 575V, 200/400V, 208-230/460V, 115/208-230V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Standard Efficiency levels
- Frame sizes from 143/5T to 254/6TC
- Mounting options include footed, footless round body with C-face, footed with C-face and footless with C-face
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
