01036ET3ER215TC-W22
Available from manufacturer (as of 10/21/2026)
Weg

01036ET3ER215TC-W22

$1,267.36

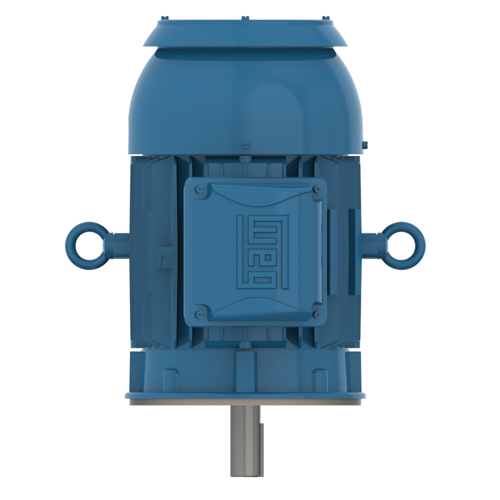

Motor, 10hp, 3600rpm, 2-Pole, 3 Phase, 230/460VAC, 60Hz, 215TC Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footless Round Body/C-Flange, W22, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)

Weight:
181.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
WEG W22 NEMA Premium cast iron TEFC motors for industrial duty
Description

The WEG W22 TEFC motor line is built on a cast iron frame with solid, full-length feet and is designed for lower noise and cooler operation for general-purpose industrial applications. The line includes NEMA Premium and Super Premium Efficiency ratings.

Key Features

  • Cast iron frame with solid feet for rigid mounting and reduced vibration
  • 1.25 service factor through 100hp; 1.15 service factor on larger ratings
  • Built to NEMA MG-1 standards
  • Ratings from 1hp to 700hp
  • 3600, 1800, 1200, 900 rpm synchronous speed options
  • Three phase design
  • Voltage options include 230/460V, 460V, 575V, 208-230/460V, 200-208/400V
  • Totally enclosed fan cooled (TEFC) enclosure
  • NEMA Premium Efficiency and Super Premium Efficiency levels
  • Frame sizes from 143/5TC to 588/9TS
  • Mounting options include footed, footless round body with C-face and footed with C-face
  • Roller bearings on select models
  • IP55 degree of protection
  • AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
