Weg
00736ET3YAL132S-W22
Motor, 10hp, 3600rpm, 2 Pole, 460//380-415 V, 60Hz, NEMA MG-1, IC411 TEFC, Footed, Multi-Mounting, Right Position Terminal Box, IP55 (Drop Ship Only Via Truck)
$1,149.88
Available from manufacturer (as of 10/27/2026)
00152ET3V182T-W22
$671.06
Motor, 1.5hp, 1200rpm, 6-Pole, 3 Phase, 200/400VAC, 60Hz, 182/4T Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/No Flange, W22, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 98.02 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W22 TEFC motor line is built on a cast iron frame with solid, full-length feet and is designed for lower noise and cooler operation for general-purpose industrial applications. The line includes NEMA Premium and Super Premium Efficiency ratings.
Key Features
- Cast iron frame with solid feet for rigid mounting and reduced vibration
- 1.25 service factor through 100hp; 1.15 service factor on larger ratings
- Built to NEMA MG-1 standards
- Ratings from 1hp to 700hp
- 3600, 1800, 1200, 900 rpm synchronous speed options
- Three phase design
- Voltage options include 230/460V, 460V, 575V, 208-230/460V, 200-208/400V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Super Premium Efficiency levels
- Frame sizes from 143/5TC to 588/9TS
- Mounting options include footed, footless round body with C-face and footed with C-face
- Roller bearings on select models
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00312ET3EAL132M-W22
Motor, 4hp, 1200rpm, 6 Pole, 132M Aluminum Frame, 230/460//190/380V, 60Hz, NEMA MG-1, IC411 TEFC, Footed, No Flange, B3L(E) Mounting, Right Position Terminal Box, IP55
$1,109.83
Weg
01536ET3Y160M-W22
Motor, 20hp, 3600rpm, 2-Pole, 3 Phase, 460VAC, 60Hz, 160M Frame, IE3, IC411 TEFC, Cast Iron, Footed/No Flange, IEC Tru-Metric, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
$2,147.57
Weg
00109ST3QIE182T-W22
Motor, 1hp, 900rpm, 8-Pole, 3 Phase, 460VAC, 60Hz, 182/4T Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/No Flange, W22 IEEE 841 Severe Duty, IP56, (Cannot Ship UPS, Drop Ship Only via Truck)
$1,785.34
Weg

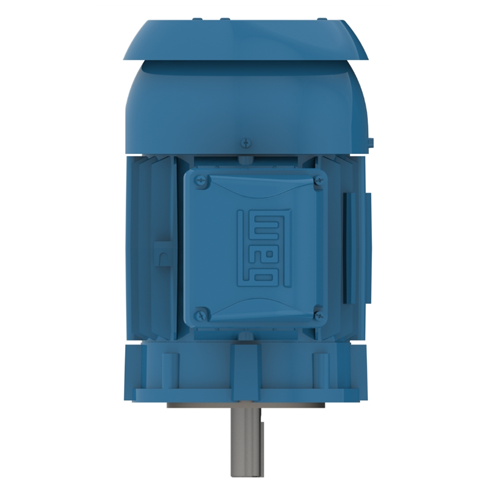

00158ET3ER145TC-W22
Motor, 1.5hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 145TC Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footless Round Body/C-Flange, W22, IP55
$530.44
